| Mfr. #: | STGP19NC60KD |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | IGBT 600V 35A 125W TO220 |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STGP19NC60KD Scheda dati |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 35A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 75A. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 12A. 30ns/105ns Td-on-off at 25°C; Operating temperature: 480V, 12A, 10 Ohm, 15V Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 35 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

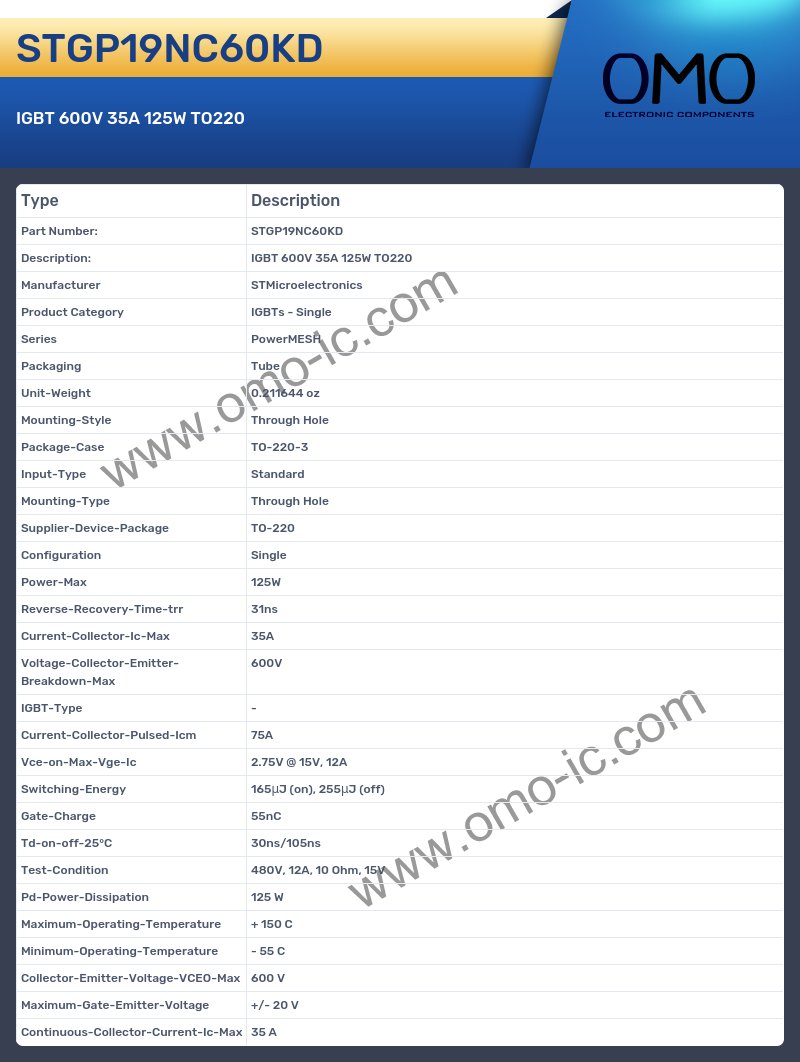

STGP19NC60KD Specifications
