STGP10NB60SD

STGP10NB60SD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Maximum current collector Ic is 29A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 1.75V @ 15V, 10A. 700ns/1.2μs Td-on-off at 25°C; Operating temperature: 480V, 10A, 1 kOhm, 15V

STGP10NB60SD Image

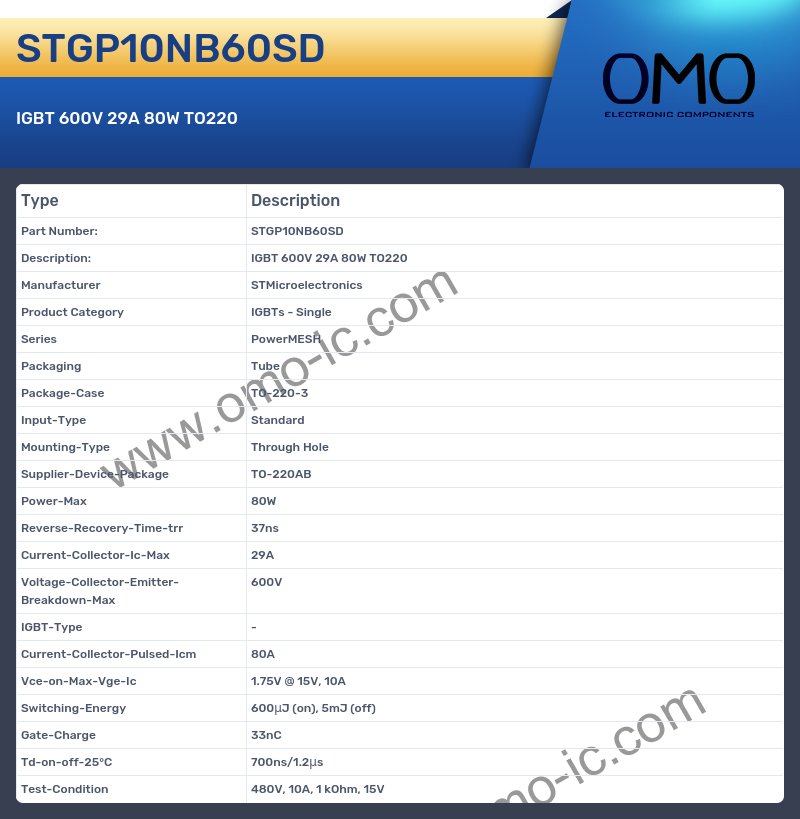

STGP10NB60SD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Power-Max 80W
• Reverse-Recovery-Time-trr 37ns
• Current-Collector-Ic-Max 29A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 1.75V @ 15V, 10A
• Switching-Energy 600μJ (on), 5mJ (off)
• Gate-Charge 33nC
• Td-on-off-25°C 700ns/1.2μs
• Test-Condition 480V, 10A, 1 kOhm, 15V
