STGP100N30

STGP100N30 Overview

Product belongs to the STripFET series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Maximum current collector Ic is 90A . Maximum collector-emitter breakdown voltage of 330V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 50A. -/134ns Td-on-off at 25°C; Operating temperature: 180V, 25A, 10 Ohm, 15V

STGP100N30 Image

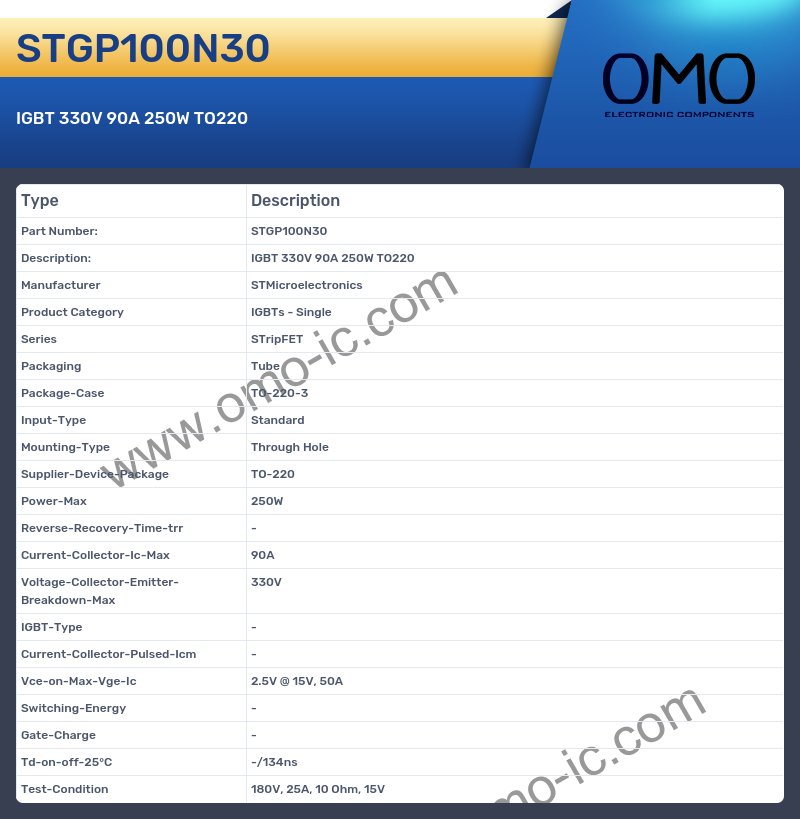

STGP100N30 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series STripFET
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Power-Max 250W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 90A
• Voltage-Collector-Emitter-Breakdown-Max 330V
• IGBT-Type -
• Current-Collector-Pulsed-Icm -
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 50A
• Switching-Energy -
• Gate-Charge -
• Td-on-off-25°C -/134ns
• Test-Condition 180V, 25A, 10 Ohm, 15V
