STGB7NB60HDT4

STGB7NB60HDT4 Overview

Product belongs to the PowerMESH series. Cut Tape (CT) is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 14A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 56A. The Vce-on-Max-Vge-Ic is rated at 2.8V @ 15V, 7A. 15ns/75ns Td-on-off at 25°C; Operating temperature: 480V, 7A, 10 Ohm, 15V

STGB7NB60HDT4 Image

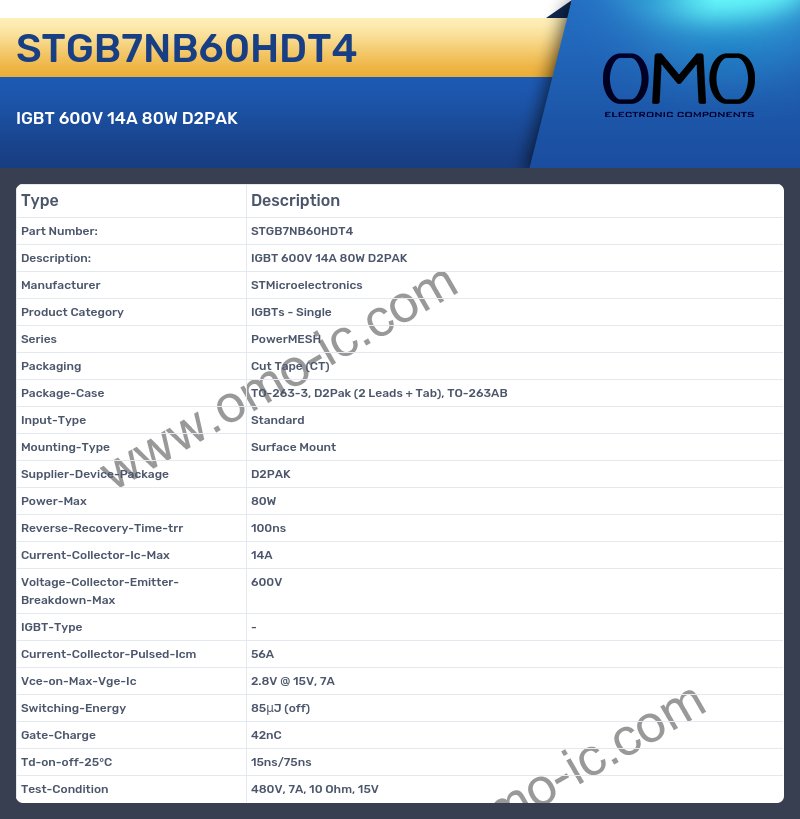

STGB7NB60HDT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Cut Tape (CT)
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 80W
• Reverse-Recovery-Time-trr 100ns
• Current-Collector-Ic-Max 14A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 56A
• Vce-on-Max-Vge-Ic 2.8V @ 15V, 7A
• Switching-Energy 85μJ (off)
• Gate-Charge 42nC
• Td-on-off-25°C 15ns/75ns
• Test-Condition 480V, 7A, 10 Ohm, 15V
