STCC2540IQTR

STCC2540IQTR Overview

Product belongs to the STCC2540 series. This product is categorized as USB Power Distribution Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style VFQFPN-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 16-VFQFP-N (3x3) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The -. The 65 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 2.8A of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Max on-resistance of 95 mOhms Maximum off time: 0.3 ms Maximum on-time: 0.8 ms

STCC2540IQTR Image

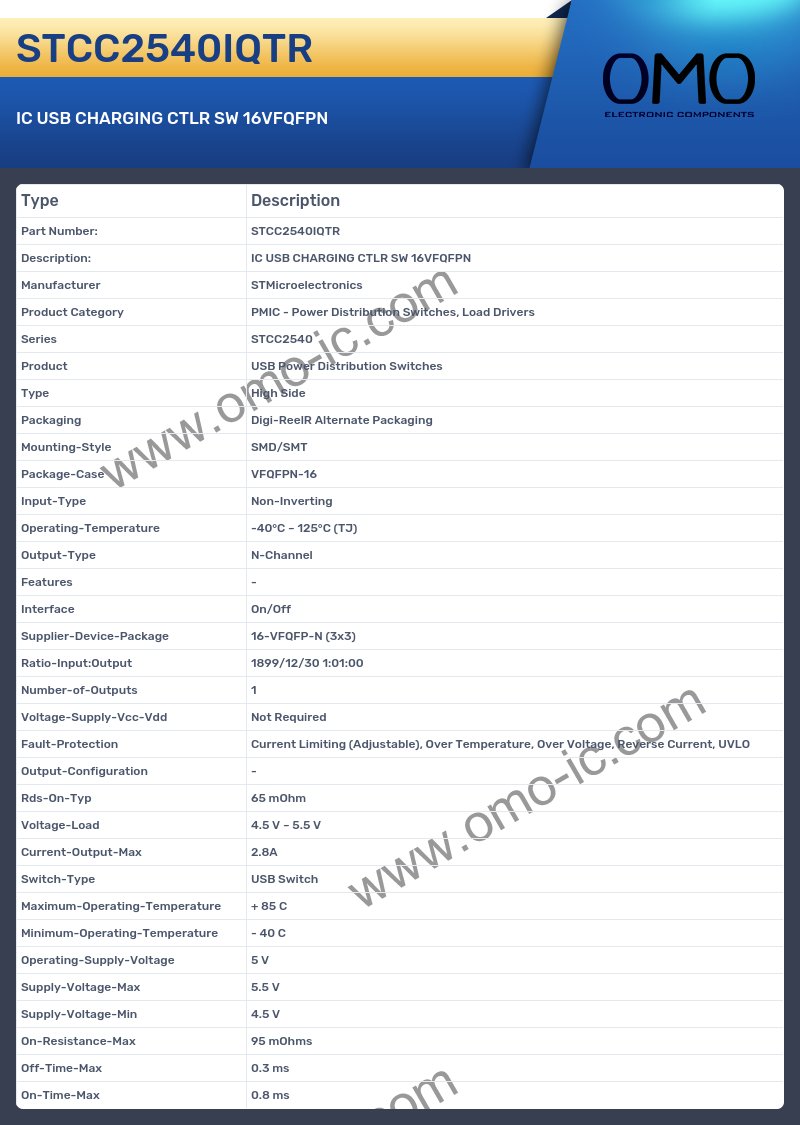

STCC2540IQTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series STCC2540
• Product USB Power Distribution Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case VFQFPN-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 16-VFQFP-N (3x3)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO
• Output-Configuration -
• Rds-On-Typ 65 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 2.8A
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• On-Resistance-Max 95 mOhms
• Off-Time-Max 0.3 ms
• On-Time-Max 0.8 ms
