STBV42 Overview

Product belongs to the 500V to 1000V Transistors series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92 Configuration Single Power-off control: 1 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.4 V The 700 V voltage rating is 40 V. 9 V rating of 5 V Max DC collector current: 1 A This product is capable of handling a 1 A continuous collector current. Minimum hfe for DC collector-base gain is 10. 30 of 605.

STBV42 Image

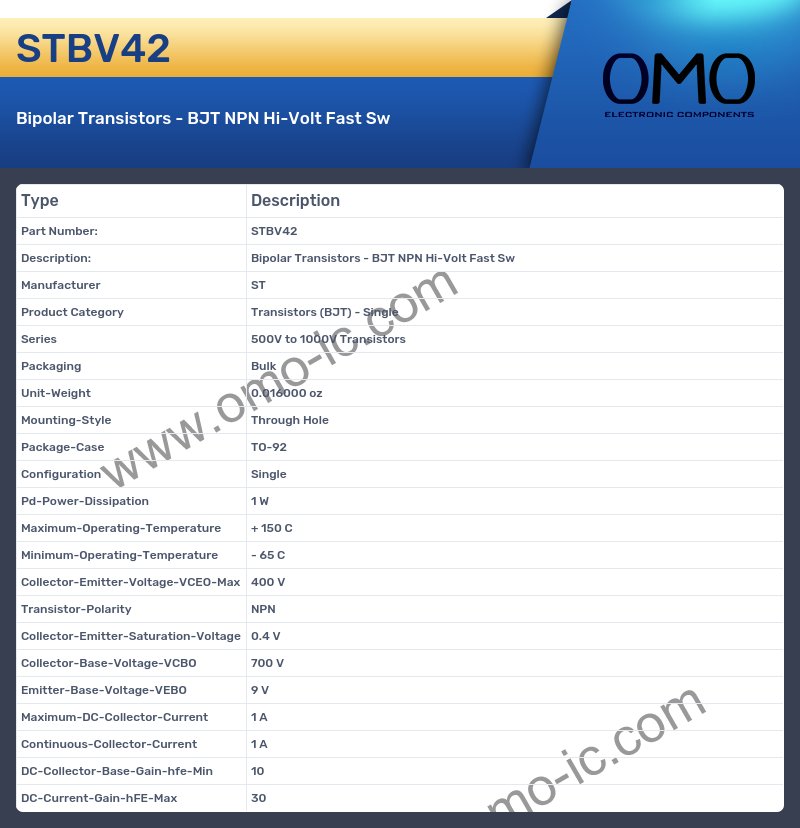

STBV42 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 500V to 1000V Transistors
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92
• Configuration Single
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 0.4 V
• Collector-Base-Voltage-VCBO 700 V
• Emitter-Base-Voltage-VEBO 9 V
• Maximum-DC-Collector-Current 1 A
• Continuous-Collector-Current 1 A
• DC-Collector-Base-Gain-hfe-Min 10
• DC-Current-Gain-hFE-Max 30
