ST2S06BPQR

ST2S06BPQR Overview

Product belongs to the ST2S06 series. Type: Synchronous Buck Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000776 oz SMD/SMT Mounting-Style QFN-12 Operational temperature range: -30°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 12-QFN (4x4) Number-of-Outputs: 2 Topology: Buck feedback This product features 'Frequency-Switching' at 1.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 2.5V. The 5.5V. Maximum operating temperature of + 125 C Minimum operating temperature: - 30 C Output voltage: 0.8 V 3.3 V Maximum Input Voltage: 5.5 V Output current: 500 mA Switching frequency is 1500 kHz The product's 2.5 V is 5.1 V. Load regulation is 5.5 mV.

ST2S06BPQR Image

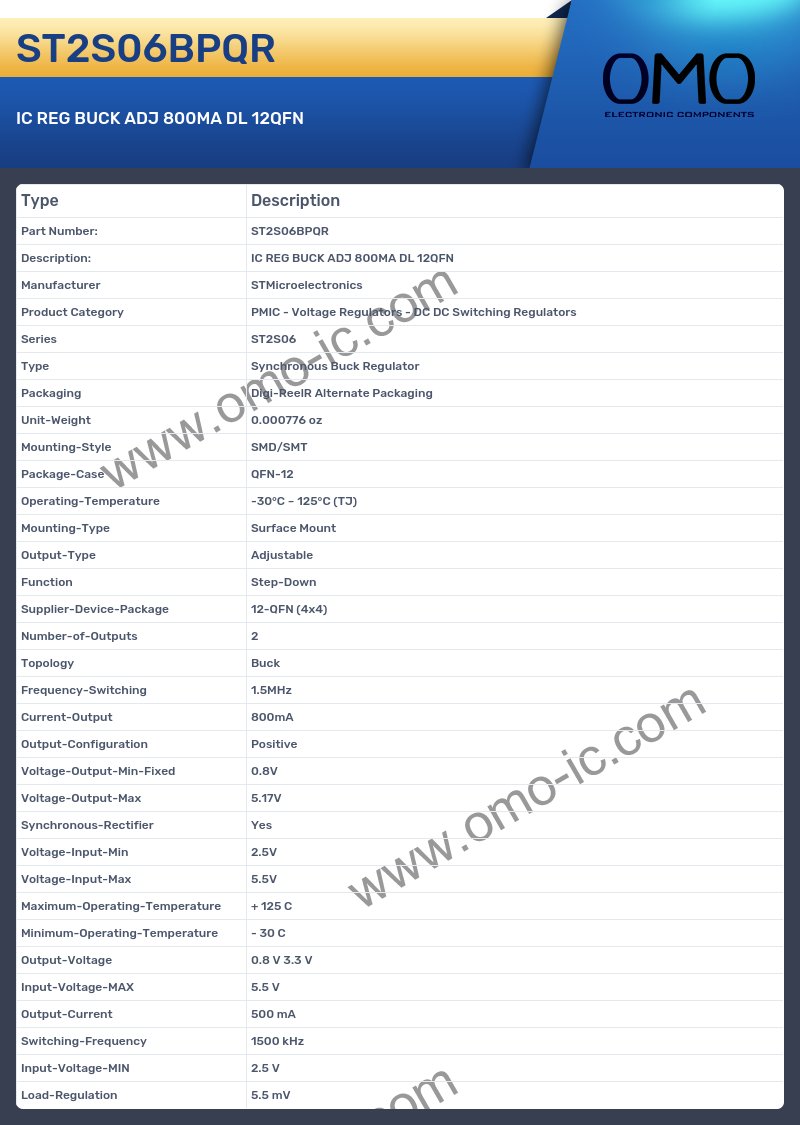

ST2S06BPQR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series ST2S06
• Type Synchronous Buck Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000776 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-12
• Operating-Temperature -30°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 12-QFN (4x4)
• Number-of-Outputs 2
• Topology Buck
• Frequency-Switching 1.5MHz
• Current-Output 800mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 5.17V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2.5V
• Voltage-Input-Max 5.5V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 30 C
• Output-Voltage 0.8 V 3.3 V
• Input-Voltage-MAX 5.5 V
• Output-Current 500 mA
• Switching-Frequency 1500 kHz
• Input-Voltage-MIN 2.5 V
• Load-Regulation 5.5 mV
