ST1284-01A8RL

ST1284-01A8RL Overview

Product belongs to the ST1284 series. Type: Low Pass Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style The Height of the product is 0.069" (1.75mm). QSOP-28 RC is the technology used. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 17 Filter order is - - of 10dB for superior noise reduction - Ohms Resistance Channel There are two Values: R = 33 Ohms, 4.7 kOhms, C = 180pF. ESD-Protection": " Yes Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5.5 V supply voltage for reliable performance.

ST1284-01A8RL Image

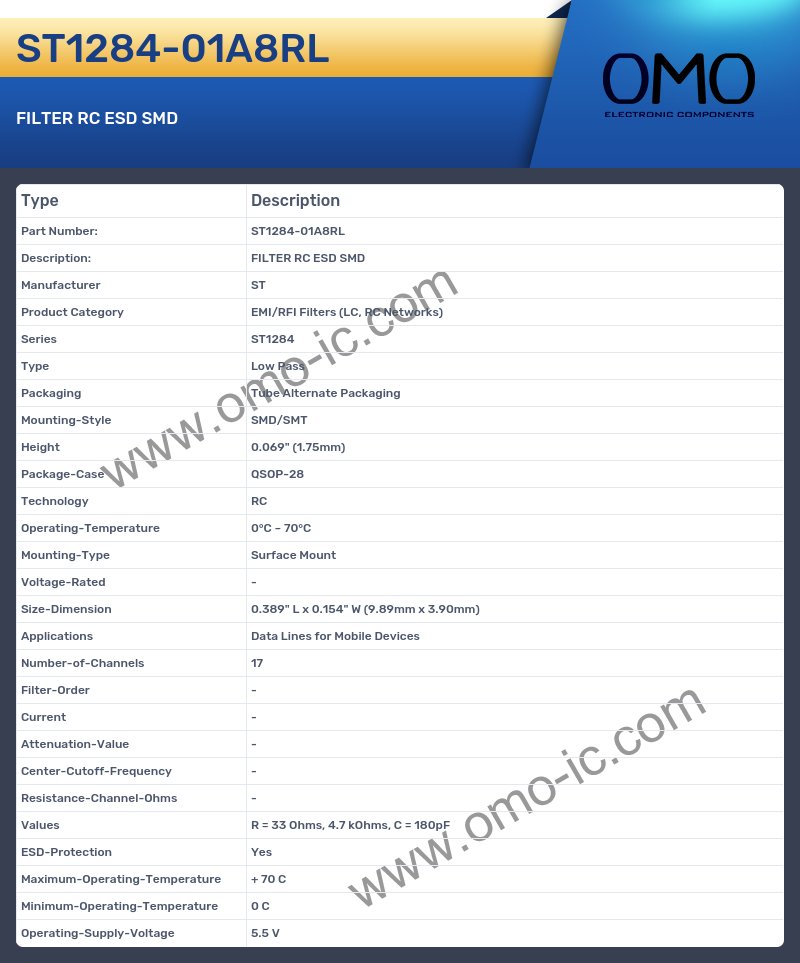

ST1284-01A8RL Specifications

• Manufacturer ST
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series ST1284
• Type Low Pass
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Height 0.069" (1.75mm)
• Package-Case QSOP-28
• Technology RC
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.389" L x 0.154" W (9.89mm x 3.90mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 17
• Filter-Order -
• Current -
• Attenuation-Value -
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms -
• Values R = 33 Ohms, 4.7 kOhms, C = 180pF
• ESD-Protection Yes
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5.5 V
