SSM3302ACPZ-RL

SSM3302ACPZ-RL Overview

Product belongs to the SSM3302 series. This product is categorized as Audio Amplifiers Type: Class D Digi-ReelR Alternate Packaging is the packaging method for this product LFCSP-40 The Differential for this product is CMOS/TTL. Operational temperature range: * Surface Mount mounting type Output-Type: 2-Channel (Stereo) Voltage Supply Range: 7 V ~ 18 V Supplier device package: 40-LFCSP-WQ (6x6) Maximum Output Power of 36.6W x 1 @ 2 Ohm; 24W x 2 @ 4 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12.2 mA is 92 nA. The EVAL-SSM3302Z. Maximum supply voltage of 18 V Minimum supply voltage is 7 V This product has a 0.01 % for clear and precise audio. 8 Ohm audio load impedance Single supply type

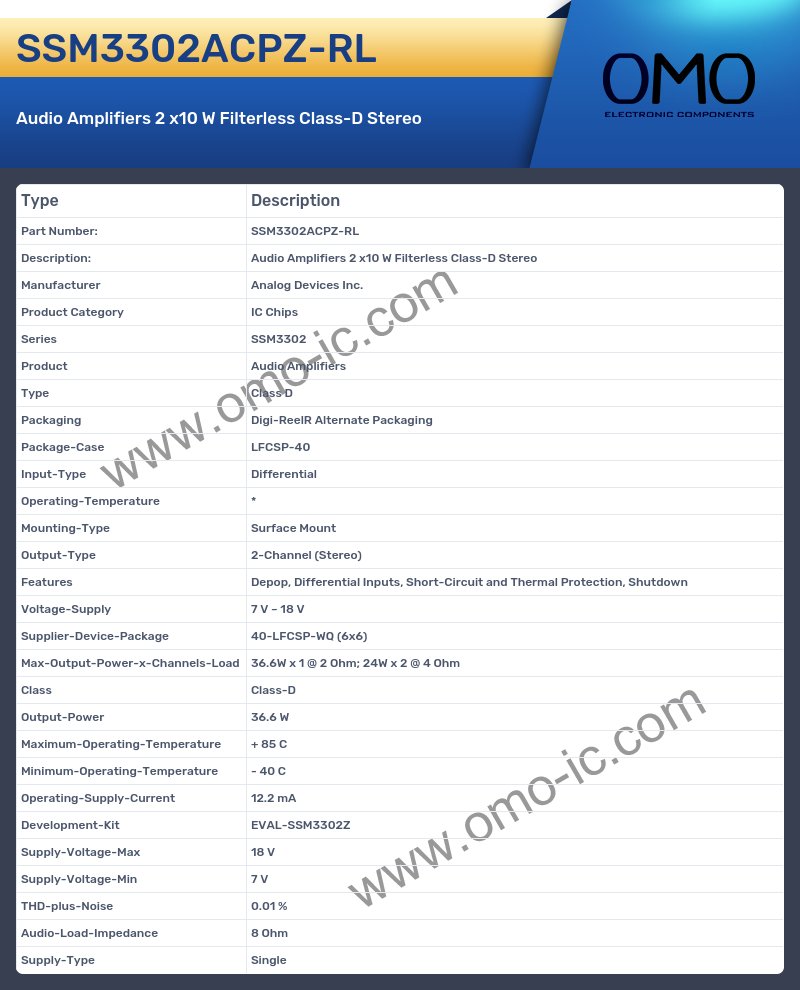

SSM3302ACPZ-RL Image

SSM3302ACPZ-RL Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series SSM3302
• Product Audio Amplifiers
• Type Class D
• Packaging Digi-ReelR Alternate Packaging
• Package-Case LFCSP-40
• Input-Type Differential
• Operating-Temperature *
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo)
• Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
• Voltage-Supply 7 V ~ 18 V
• Supplier-Device-Package 40-LFCSP-WQ (6x6)
• Max-Output-Power-x-Channels-Load 36.6W x 1 @ 2 Ohm; 24W x 2 @ 4 Ohm
• Class Class-D
• Output-Power 36.6 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12.2 mA
• Development-Kit EVAL-SSM3302Z
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 7 V
• THD-plus-Noise 0.01 %
• Audio-Load-Impedance 8 Ohm
• Supply-Type Single
