SSM2518CPZ-R7

SSM2518CPZ-R7 Overview

Product belongs to the SSM2518 series. This product is categorized as Audio Amplifiers Type: Class D Digi-ReelR Alternate Packaging is the packaging method for this product 20-WFQFN Exposed Pad, CSP The Single for this product is CMOS/TTL. Operational temperature range: * Surface Mount mounting type Output-Type: 2-Channel (Stereo) Voltage Supply Range: 2.5 V ~ 5.5 V Supplier device package: 20-LFCSP-WQ (4x4) Maximum Output Power of 2.5W x 2 @ 4 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V This product has a 0.04 % for clear and precise audio. 8 Ohm audio load impedance Dual supply type

SSM2518CPZ-R7 Image

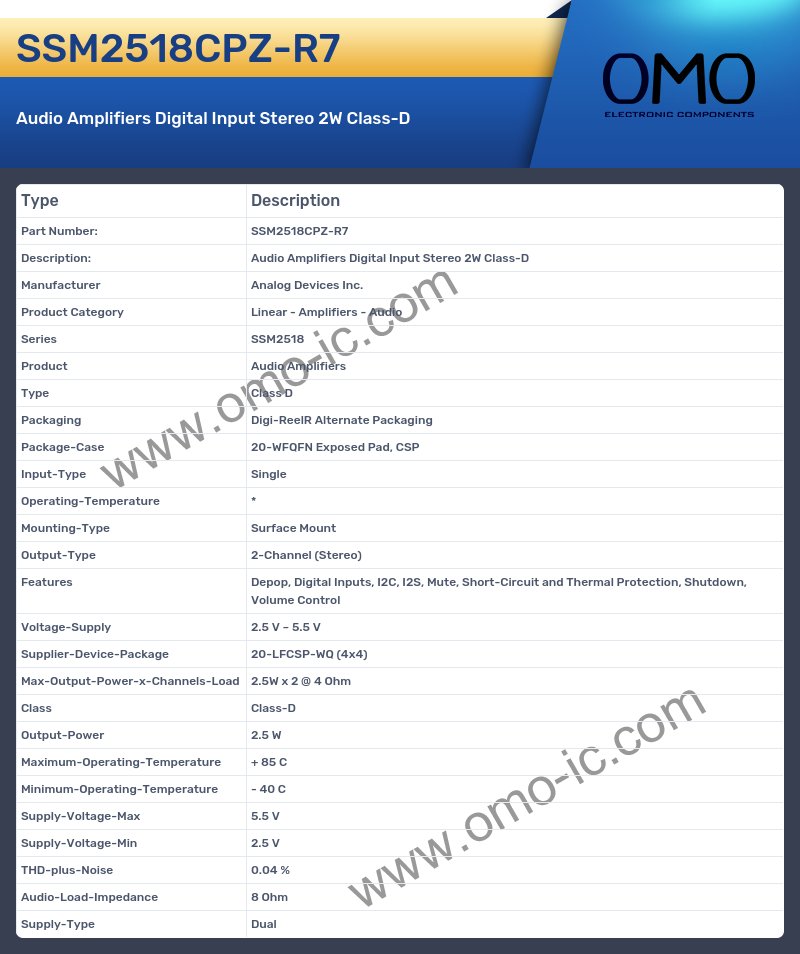

SSM2518CPZ-R7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Audio
• Series SSM2518
• Product Audio Amplifiers
• Type Class D
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 20-WFQFN Exposed Pad, CSP
• Input-Type Single
• Operating-Temperature *
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo)
• Features Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control
• Voltage-Supply 2.5 V ~ 5.5 V
• Supplier-Device-Package 20-LFCSP-WQ (4x4)
• Max-Output-Power-x-Channels-Load 2.5W x 2 @ 4 Ohm
• Class Class-D
• Output-Power 2.5 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• THD-plus-Noise 0.04 %
• Audio-Load-Impedance 8 Ohm
• Supply-Type Dual
