SN75LVDS391PW

SN75LVDS391PW Overview

Product belongs to the SN75LVDS391 series. Type: Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.002222 oz SMD/SMT Mounting-Style TSSOP-16 The LVTTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: LVDS Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 16-TSSOP This product has a 4/0 number of drivers and receivers. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 26 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 4 Driver

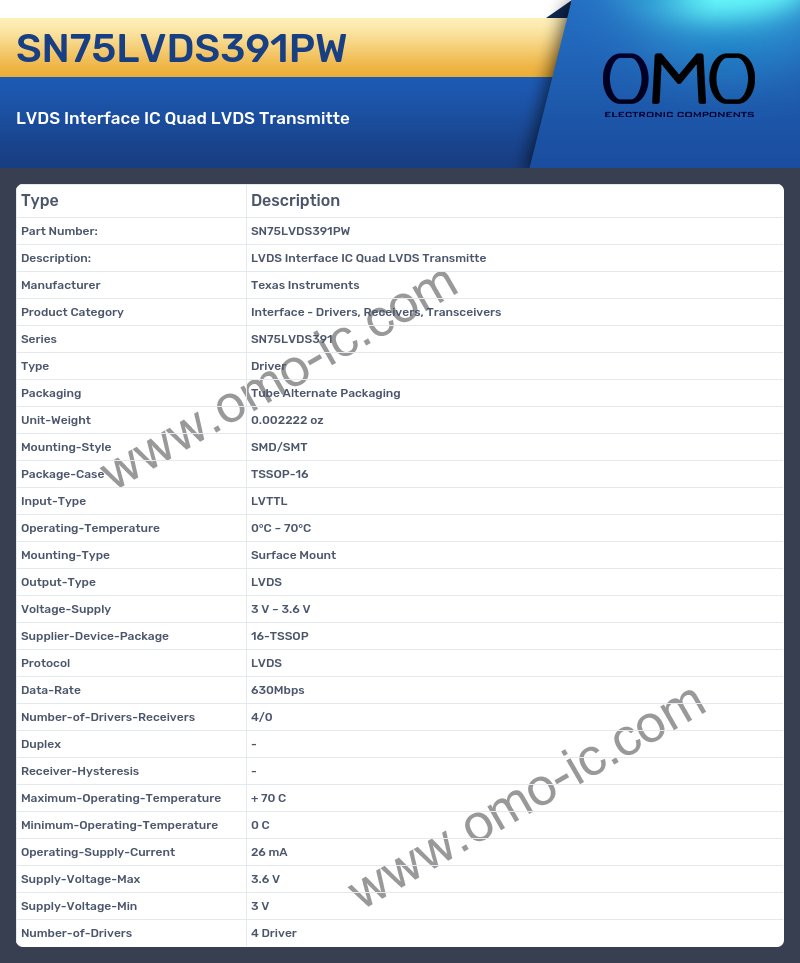

SN75LVDS391PW Image

SN75LVDS391PW Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75LVDS391
• Type Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002222 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type LVTTL
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type LVDS
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 16-TSSOP
• Protocol LVDS
• Data-Rate 630Mbps
• Number-of-Drivers-Receivers 4/0
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 26 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 4 Driver
