SN75LVDS32DR

SN75LVDS32DR Overview

Product belongs to the SN75LVDS32 series. Type: Receiver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: LVTTL Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 16-SOIC This product has a 0/4 number of drivers and receivers. Power-off control: 725 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 18 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 2 Driver The product has 4 Receiver receivers. 25 ns is 23 microseconds.

SN75LVDS32DR Image

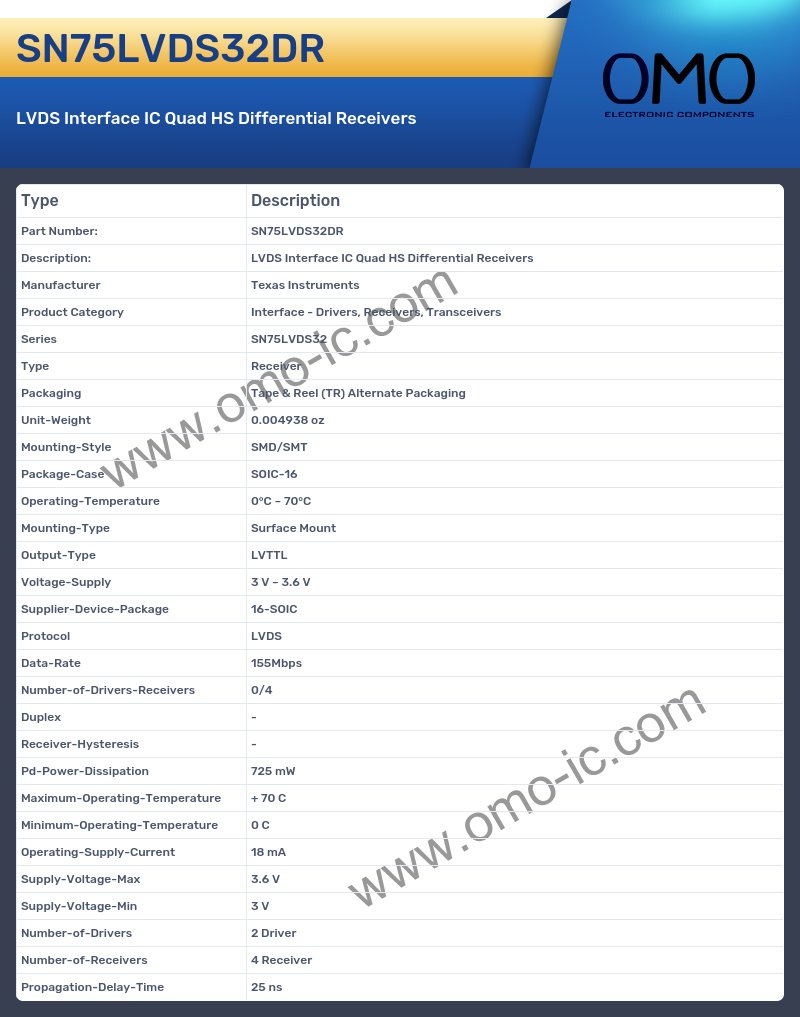

SN75LVDS32DR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75LVDS32
• Type Receiver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type LVTTL
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 16-SOIC
• Protocol LVDS
• Data-Rate 155Mbps
• Number-of-Drivers-Receivers 0/4
• Duplex -
• Receiver-Hysteresis -
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 18 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 2 Driver
• Number-of-Receivers 4 Receiver
• Propagation-Delay-Time 25 ns
