SN75ALS160DWR

SN75ALS160DWR Overview

Product belongs to the SN75ALS160 series. This product is categorized as Single-Ended Bus Transceiver Type: Transceiver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State/Open Collector Product function is Line Transceiver. Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC This product has a 2016/8/8 number of drivers and receivers. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 80 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V ALS logic type 20 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 5.2 mA 48 mA low-level output current

SN75ALS160DWR Image

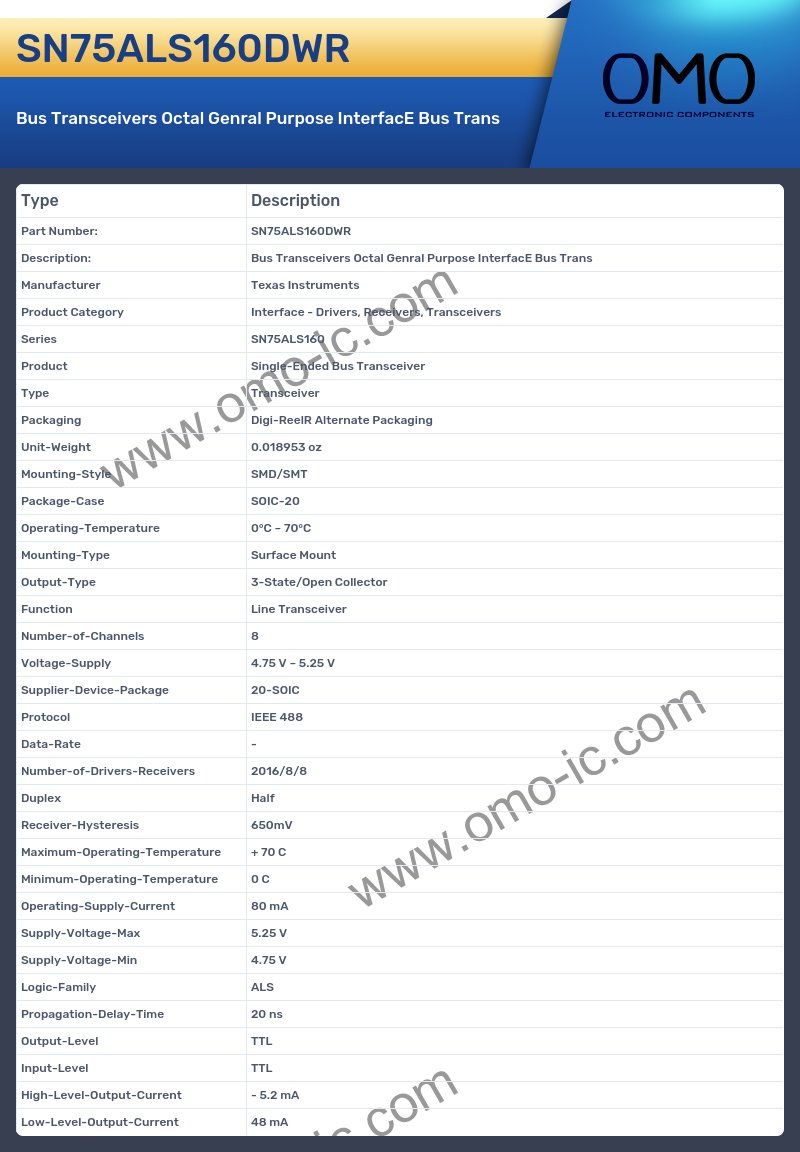

SN75ALS160DWR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75ALS160
• Product Single-Ended Bus Transceiver
• Type Transceiver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State/Open Collector
• Function Line Transceiver
• Number-of-Channels 8
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SOIC
• Protocol IEEE 488
• Data-Rate -
• Number-of-Drivers-Receivers 2016/8/8
• Duplex Half
• Receiver-Hysteresis 650mV
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 80 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family ALS
• Propagation-Delay-Time 20 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 5.2 mA
• Low-Level-Output-Current 48 mA
