SN75ALS057DW

SN75ALS057DW Overview

Product belongs to the SN75ALS057 series. This product is categorized as Trapezoidal Bus Trsnsceiver Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Open Collector Product function is Bus Transceiver. Number of channels: 4 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC 1 is 8. This product has a 2016/4/4 number of drivers and receivers. Power-off control: 1.025 W Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 40 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V ALS logic type 18 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 400 uA 16 mA low-level output current

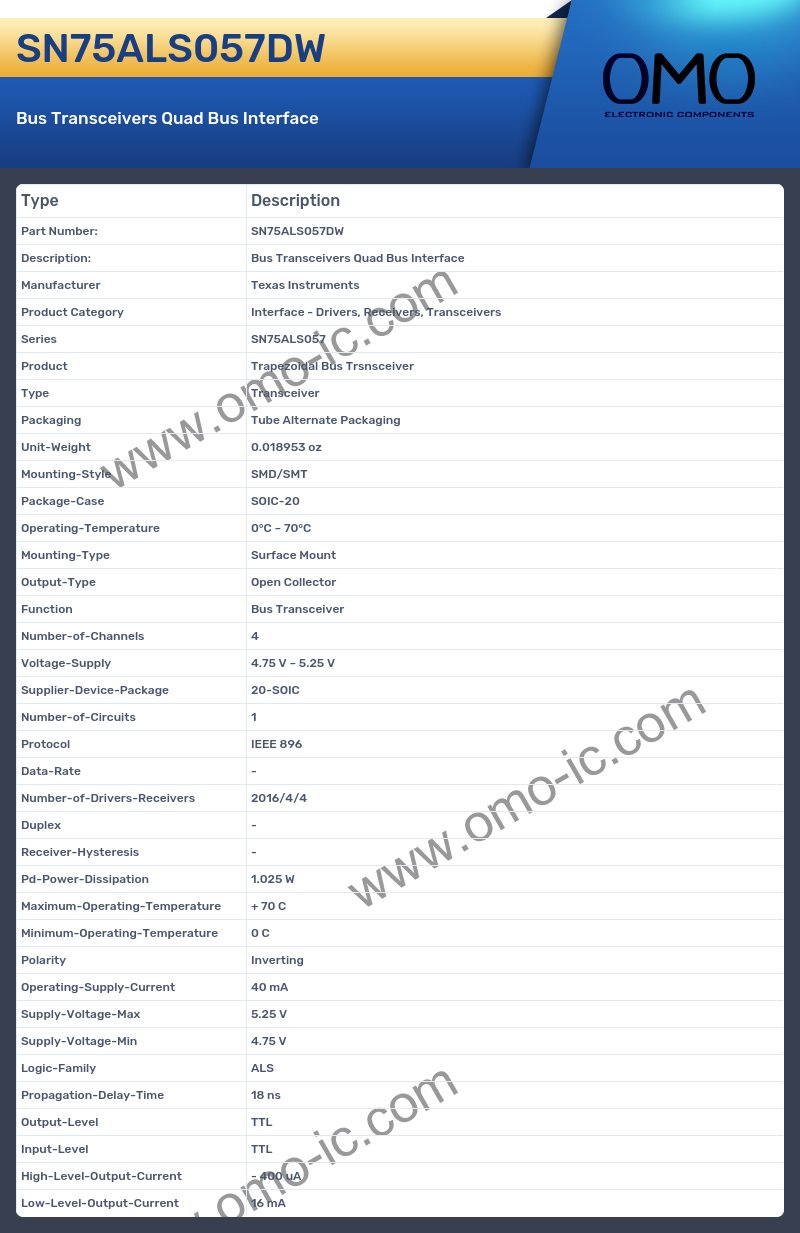

SN75ALS057DW Image

SN75ALS057DW Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75ALS057
• Product Trapezoidal Bus Trsnsceiver
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Open Collector
• Function Bus Transceiver
• Number-of-Channels 4
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 1
• Protocol IEEE 896
• Data-Rate -
• Number-of-Drivers-Receivers 2016/4/4
• Duplex -
• Receiver-Hysteresis -
• Pd-Power-Dissipation 1.025 W
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting
• Operating-Supply-Current 40 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family ALS
• Propagation-Delay-Time 18 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 400 uA
• Low-Level-Output-Current 16 mA
