SN75159D

SN75159D Overview

Product belongs to the 75000 series. Type: Driver Tube is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC This product has a 2/0 number of drivers and receivers. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 65 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Drivers: 1 Driver

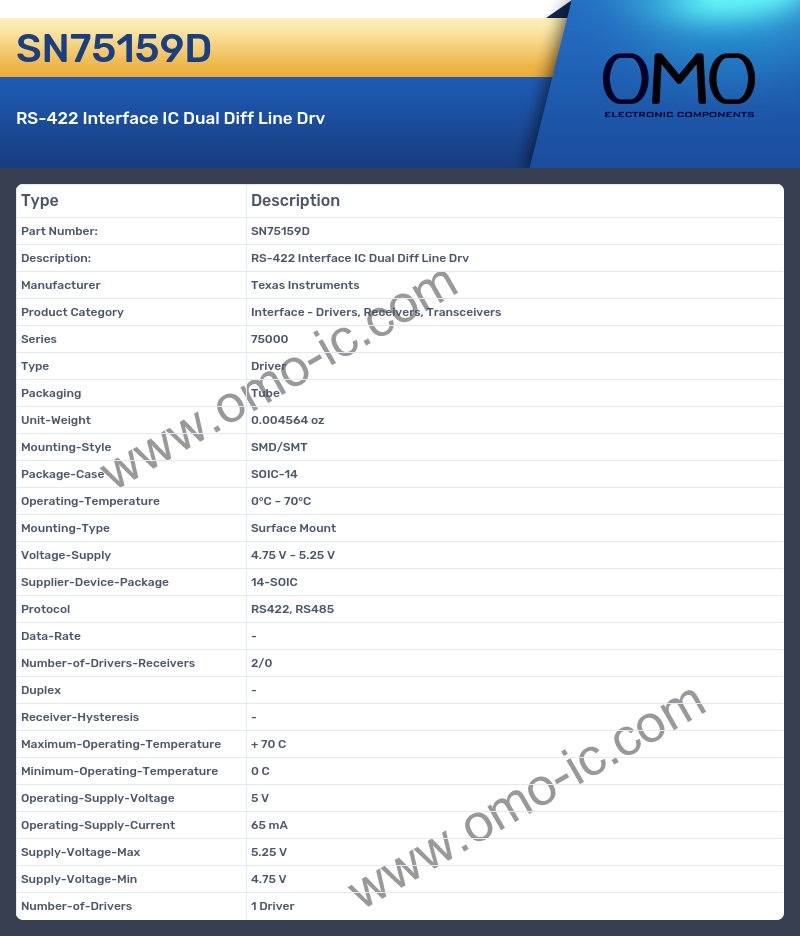

SN75159D Image

SN75159D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series 75000
• Type Driver
• Packaging Tube
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Protocol RS422, RS485
• Data-Rate -
• Number-of-Drivers-Receivers 2/0
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 65 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Drivers 1 Driver
