| Mfr. #: | SN74S283N |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Logic Adder & Subtractor 4bit Binary Full |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | SN74S283N Scheda dati |
Product belongs to the 74S series. Tube is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Product function is Binary Full Adder. Number of channels: 1 Channel Supplier device package: 16-PDIP 4 bits Binary Full Adder with Fast Carry logic type The 4.75 V ~ 5.25 V. Power-off control: 510 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V S logic type 18 ns is 23 microseconds. High-Level-Output-Current of - 1 mA 20 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

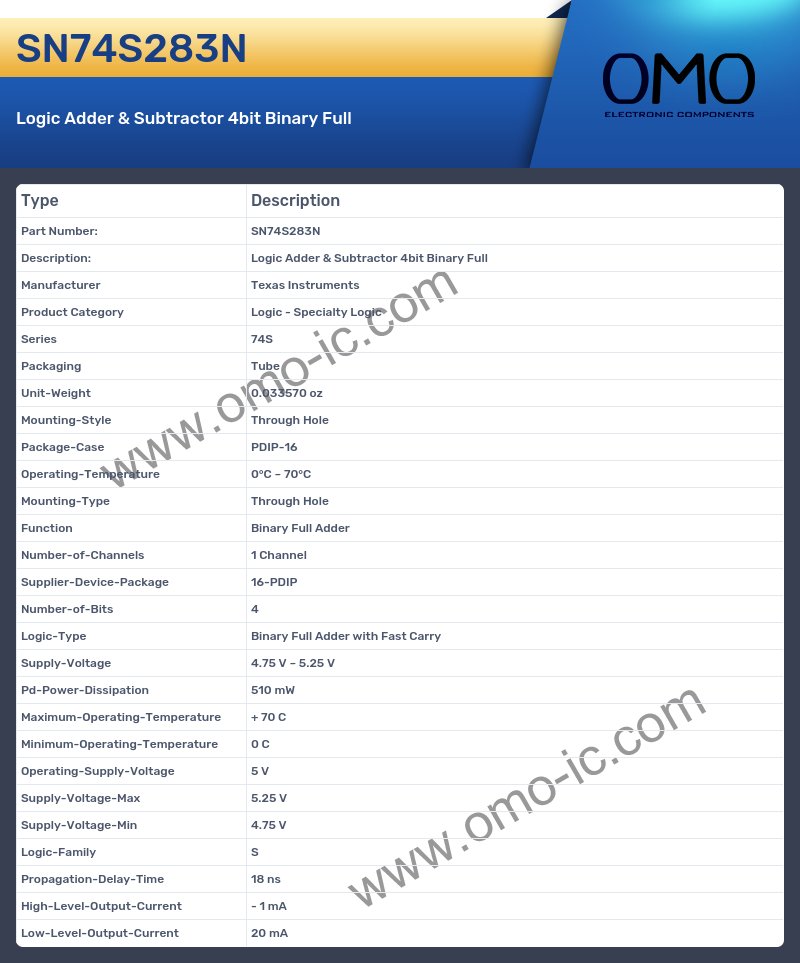

SN74S283N Specifications
