SN74S1053NSR

SN74S1053NSR Overview

Product belongs to the 74S series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style 20-SOIC (0.209", 5.30mm Width) Si is the technology used. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Supplier device package: 20-SO 16 bits Configuration Array 16 Schottky Barrier Diode Bus-Termination Array logic type The -. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Vf-Forward-Voltage: 1.05 V Ir-Reverse-Current is 5 uA. If-Forward-Current is 170 mA. VRRM (7 V) Reverse Voltage The 16 ns TRR-Reverse-Recovery-time

SN74S1053NSR Image

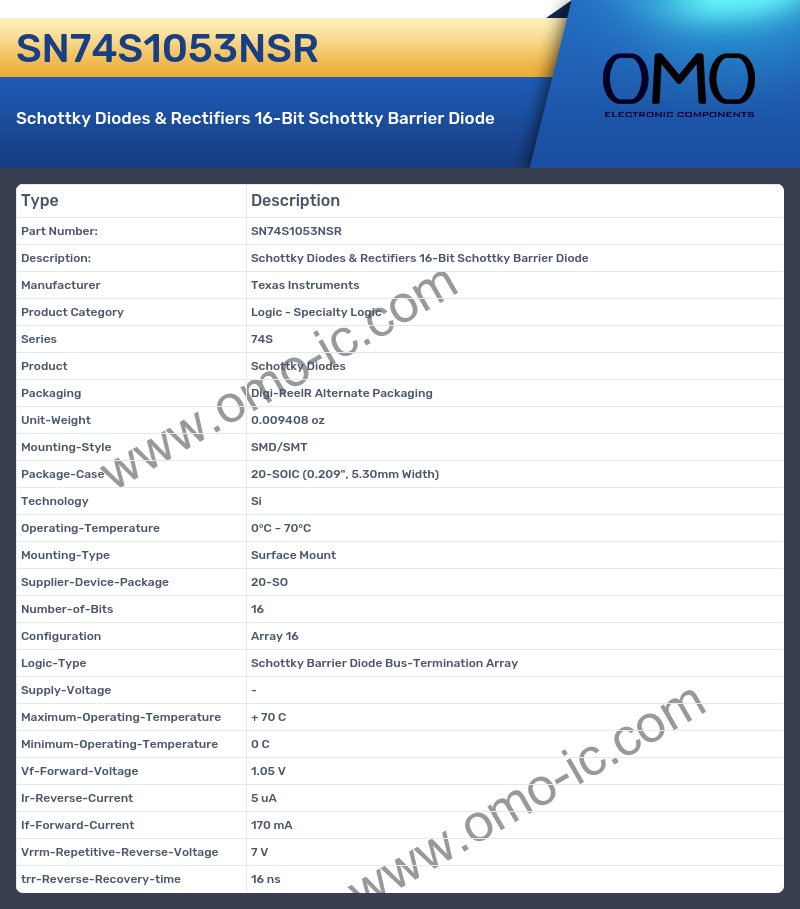

SN74S1053NSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74S
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case 20-SOIC (0.209", 5.30mm Width)
• Technology Si
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Supplier-Device-Package 20-SO
• Number-of-Bits 16
• Configuration Array 16
• Logic-Type Schottky Barrier Diode Bus-Termination Array
• Supply-Voltage -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Vf-Forward-Voltage 1.05 V
• Ir-Reverse-Current 5 uA
• If-Forward-Current 170 mA
• Vrrm-Repetitive-Reverse-Voltage 7 V
• trr-Reverse-Recovery-time 16 ns
