SN74S00DR

SN74S00DR Overview

Product belongs to the 74S series. Digi-ReelR Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 4 is 8. - maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High

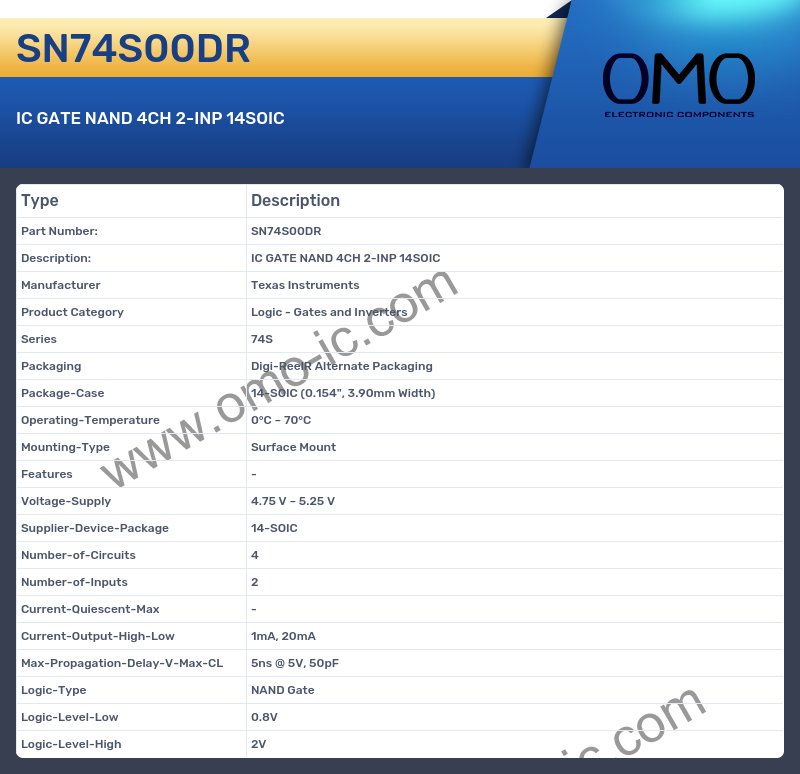

SN74S00DR Image

SN74S00DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74S
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max -
• Current-Output-High-Low 1mA, 20mA
• Max-Propagation-Delay-V-Max-CL 5ns @ 5V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
