SN74LVTH543PW

SN74LVTH543PW Overview

Product belongs to the 74LVTH series. This product is categorized as BiCMOS Tube Alternate Packaging is the packaging method for this product Weight of 0.003157 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Latched Transceiver. Number of channels: 8 Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 24-TSSOP 8 is 8. 1 element Registered Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 5 mA Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V 74LVTH logic type 2.5 ns is 23 microseconds. LVTTL is the output level. This product has an LVTTL for easy integration with other devices. High-Level-Output-Current of - 32 mA 64 mA low-level output current

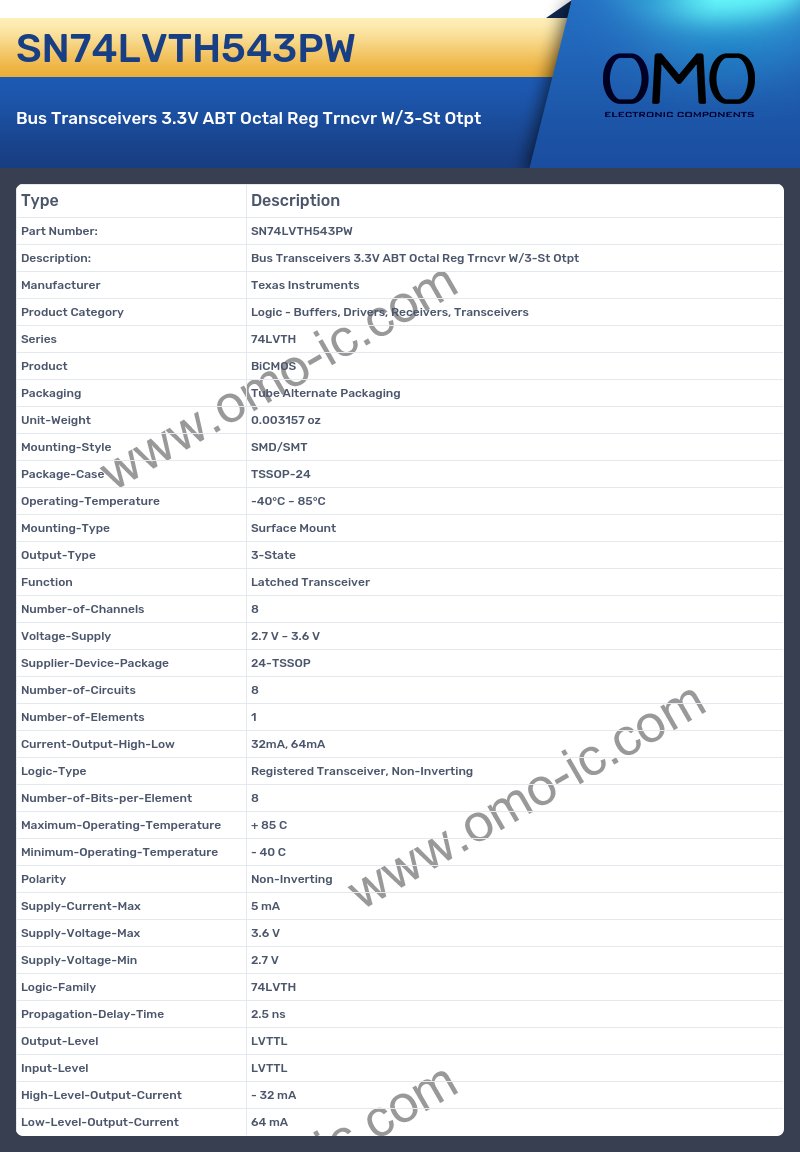

SN74LVTH543PW Image

SN74LVTH543PW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVTH
• Product BiCMOS
• Packaging Tube Alternate Packaging
• Unit-Weight 0.003157 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Latched Transceiver
• Number-of-Channels 8
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 24-TSSOP
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Registered Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 5 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family 74LVTH
• Propagation-Delay-Time 2.5 ns
• Output-Level LVTTL
• Input-Level LVTTL
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
