| Mfr. #: | SN74LVTH540DWR |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Buffers & Line Drivers 3.3V ABT Octal Buff/Drv W/3-St Otpt |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | SN74LVTH540DWR Scheda dati |
Product belongs to the 74LVTH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 20-SOIC 1 element Buffer/Line Driver, Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting 5 uA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVT logic type 2.7 ns at 3.3 V is 23 microseconds. High-Level-Output-Current of - 32 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

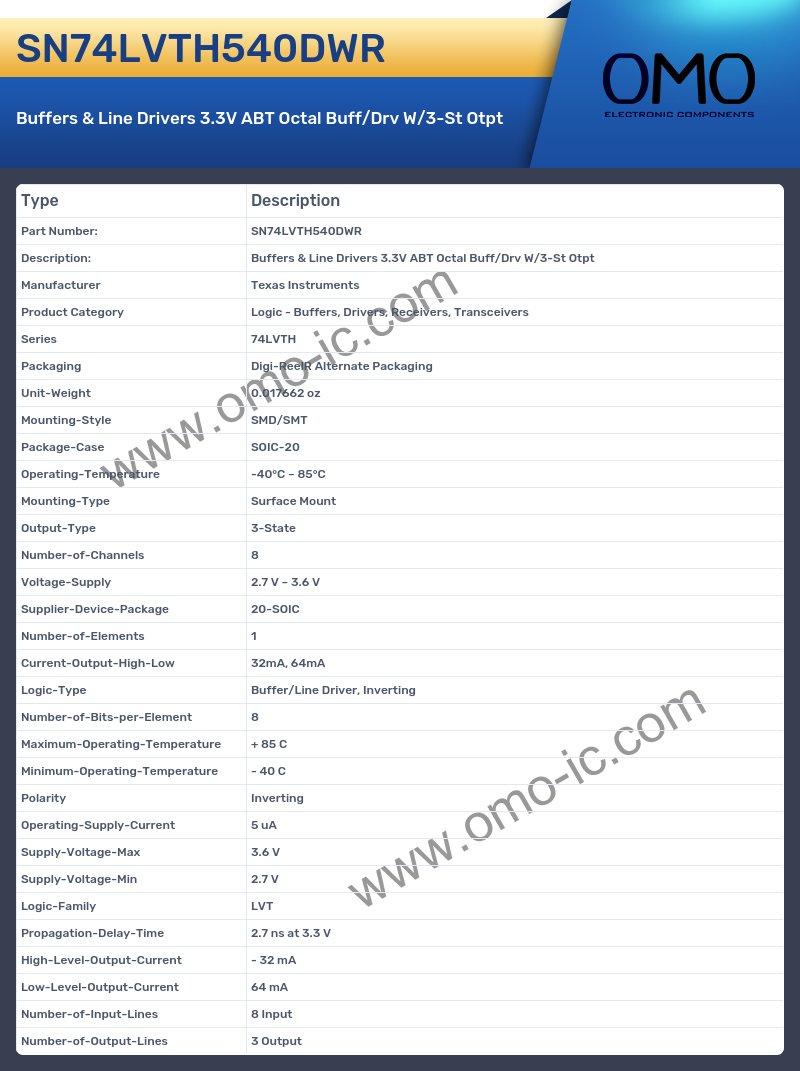

SN74LVTH540DWR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 74LVTH
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.017662 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-20.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 8
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 2.7 V ~ 3.6 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 20-SOIC.
A: Is the cutoff frequency of the product Number-of-Elements?
Q: Yes, the product's Number-of-Elements is indeed 1
A: What is the Logic-Type of the product?
Q: The Logic-Type of the product is Buffer/Line Driver, Inverting.
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 8
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Inverting
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 5 uA
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 3.6 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2.7 V.
A: What is the Logic-Family of the product?
Q: The Logic-Family of the product is LVT.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 2.7 ns at 3.3 V.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 32 mA
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 64 mA
A: At what frequency does the Number-of-Input-Lines?
Q: The product Number-of-Input-Lines is 8 Input.
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 3 Output.
