SN74LVTH374NSR

SN74LVTH374NSR Overview

Product belongs to the 74LVTH series. Type: D-Type Tape & Reel (TR) is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 The TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Product function is Standard. Voltage Supply Range: 2.7 V ~ 3.6 V 8 is 8. 150MHz is 26GHz. 1 element D-Type Flip-Flop logic type 8 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVT logic type 2.9 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 64 mA low-level output current Number-of-Input-Lines: 1 Number-of-Output-Lines: 3

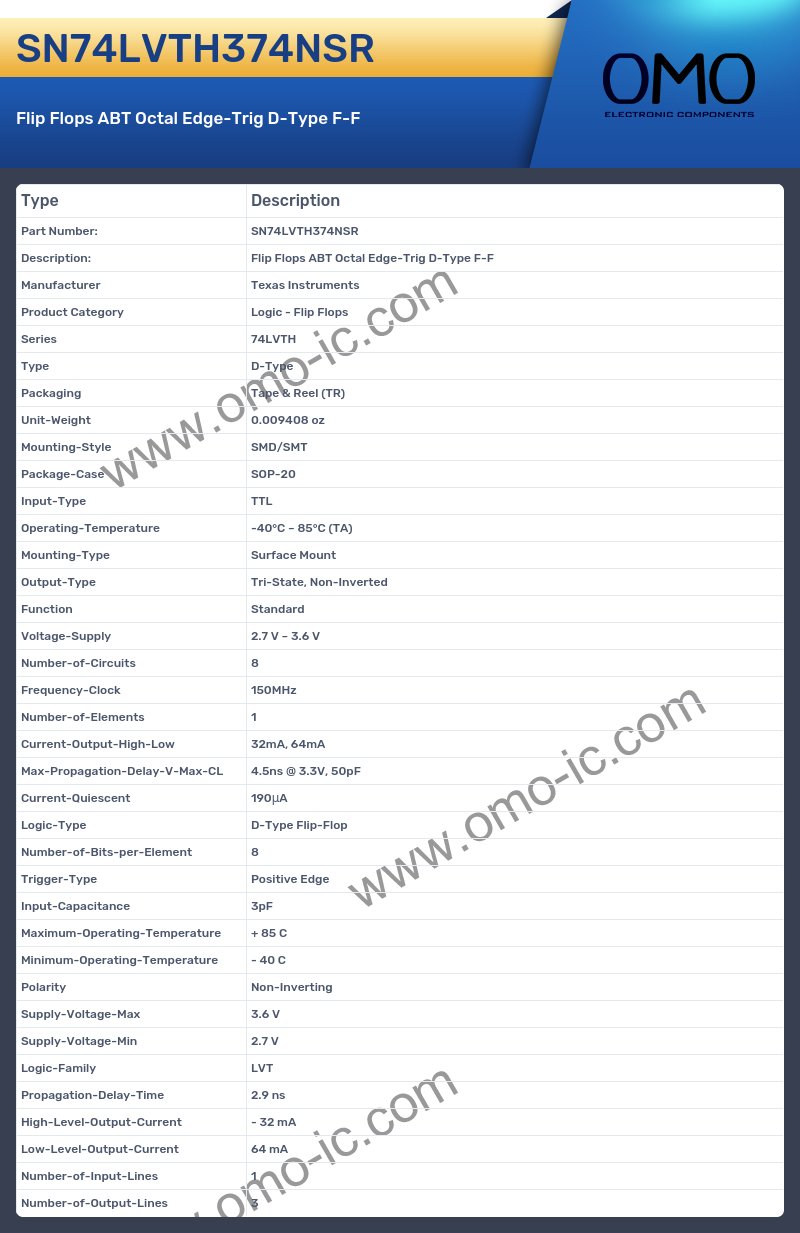

SN74LVTH374NSR Image

SN74LVTH374NSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LVTH
• Type D-Type
• Packaging Tape & Reel (TR)
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-20
• Input-Type TTL
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Function Standard
• Voltage-Supply 2.7 V ~ 3.6 V
• Number-of-Circuits 8
• Frequency-Clock 150MHz
• Number-of-Elements 1
• Current-Output-High-Low 32mA, 64mA
• Max-Propagation-Delay-V-Max-CL 4.5ns @ 3.3V, 50pF
• Current-Quiescent 190μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 8
• Trigger-Type Positive Edge
• Input-Capacitance 3pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVT
• Propagation-Delay-Time 2.9 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
• Number-of-Input-Lines 1
• Number-of-Output-Lines 3
