SN74LVTH16501DL

SN74LVTH16501DL Overview

Product belongs to the 74LVTH series. Tube Alternate Packaging is the packaging method for this product Weight of 0.024339 oz SMD/SMT Mounting-Style SSOP-56 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 56-SSOP 18-Bit is 8. Universal Bus Transceiver logic type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply current: 5000 uA Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVT logic type 3.5 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 64 mA low-level output current

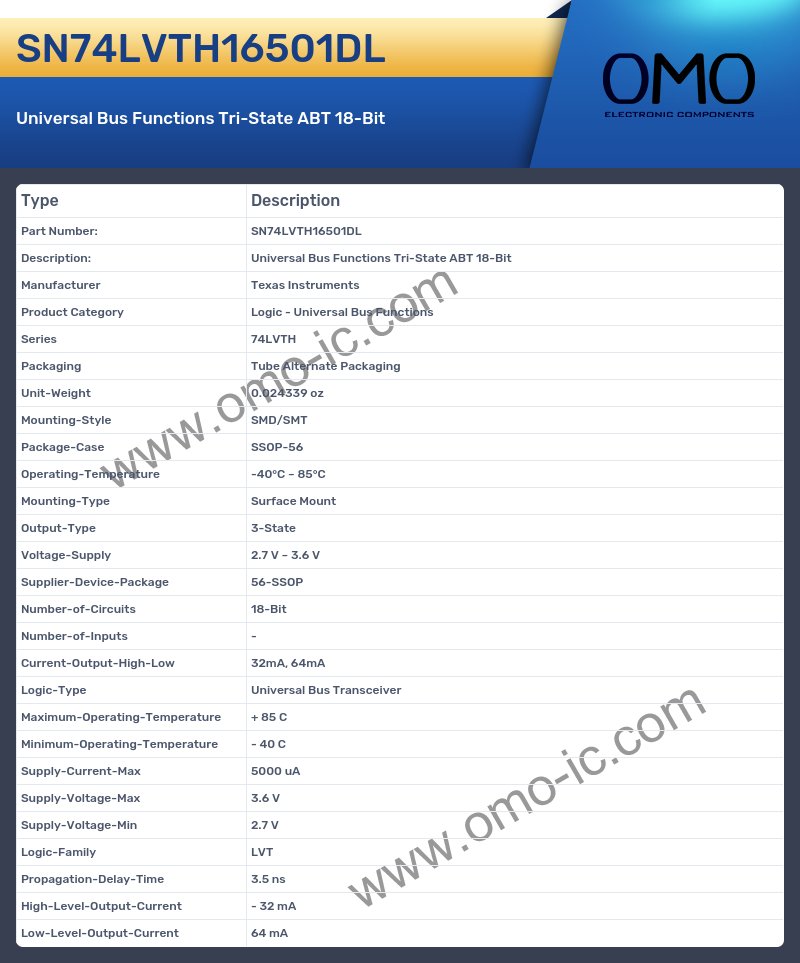

SN74LVTH16501DL Image

SN74LVTH16501DL Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Universal Bus Functions
• Series 74LVTH
• Packaging Tube Alternate Packaging
• Unit-Weight 0.024339 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-56
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 56-SSOP
• Number-of-Circuits 18-Bit
• Number-of-Inputs -
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Universal Bus Transceiver
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Current-Max 5000 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVT
• Propagation-Delay-Time 3.5 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
