SN74LVTH125DGVR

SN74LVTH125DGVR Overview

Product belongs to the 74LVTH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001474 oz SMD/SMT Mounting-Style TVSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 14-TVSOP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 7 uA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVT logic type 2.1 ns at 3.3 V is 23 microseconds. High-Level-Output-Current of - 32 mA 64 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 3 Output

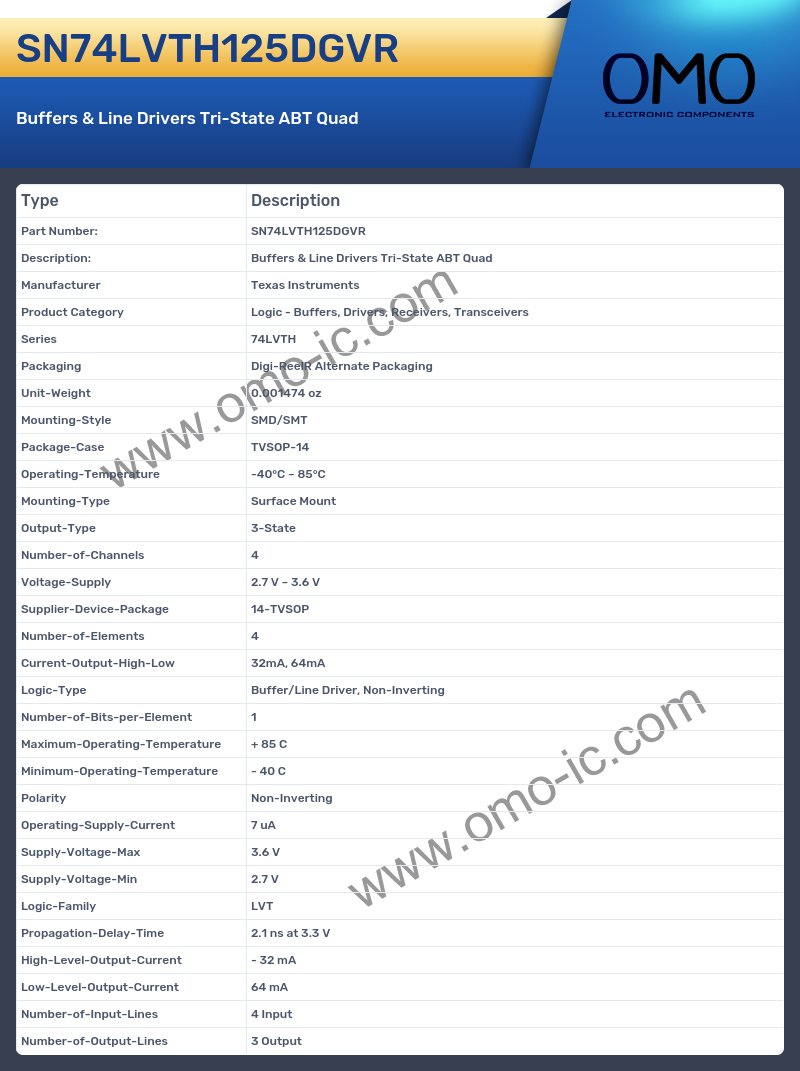

SN74LVTH125DGVR Image

SN74LVTH125DGVR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVTH
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001474 oz
• Mounting-Style SMD/SMT
• Package-Case TVSOP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 4
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 14-TVSOP
• Number-of-Elements 4
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 7 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVT
• Propagation-Delay-Time 2.1 ns at 3.3 V
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
• Number-of-Input-Lines 4 Input
• Number-of-Output-Lines 3 Output
