SN74LVCZ245ADWR

SN74LVCZ245ADWR Overview

Product belongs to the 74LVCZ series. This product is categorized as Standard Transceiver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is This feature allows the use of this device as a translator. Number of channels: 8 Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 100 uA Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVC logic type 6.3 ns is 23 microseconds. LVTTL is the output level. This product has an TTL/CMOS for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

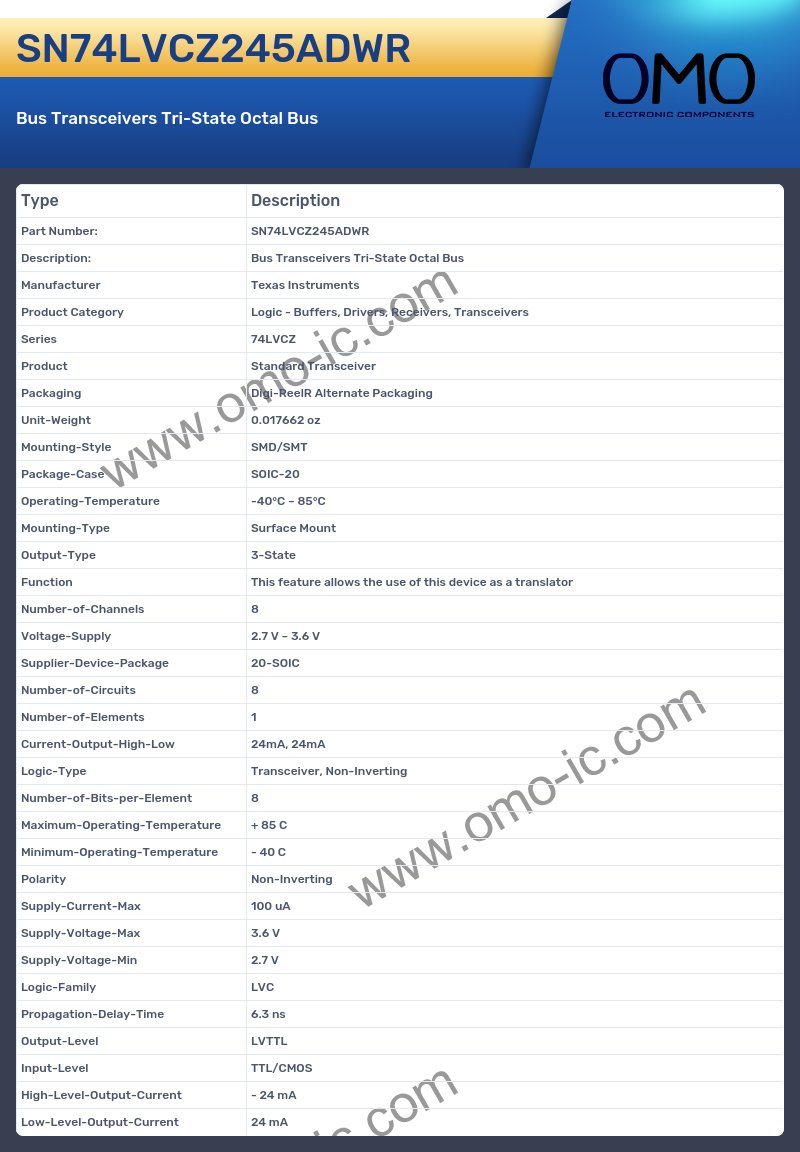

SN74LVCZ245ADWR Image

SN74LVCZ245ADWR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVCZ
• Product Standard Transceiver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function This feature allows the use of this device as a translator
• Number-of-Channels 8
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 100 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVC
• Propagation-Delay-Time 6.3 ns
• Output-Level LVTTL
• Input-Level TTL/CMOS
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
