SN74LVC574AN

SN74LVC574AN Overview

Product belongs to the 74LVC series. Type: D-Type Tube is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 The CMOS TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TA) Through Hole mounting type Output-Type: Tri-State, Non-Inverted Product function is Standard. Voltage Supply Range: 1.65 V ~ 3.6 V 8 is 8. 150MHz is 26GHz. 1 element D-Type Flip-Flop logic type 8 bits per element Positive Edge trigger type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply voltage of 3.6 V Minimum supply voltage is 1.65 V LVC logic type 7.8 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 1

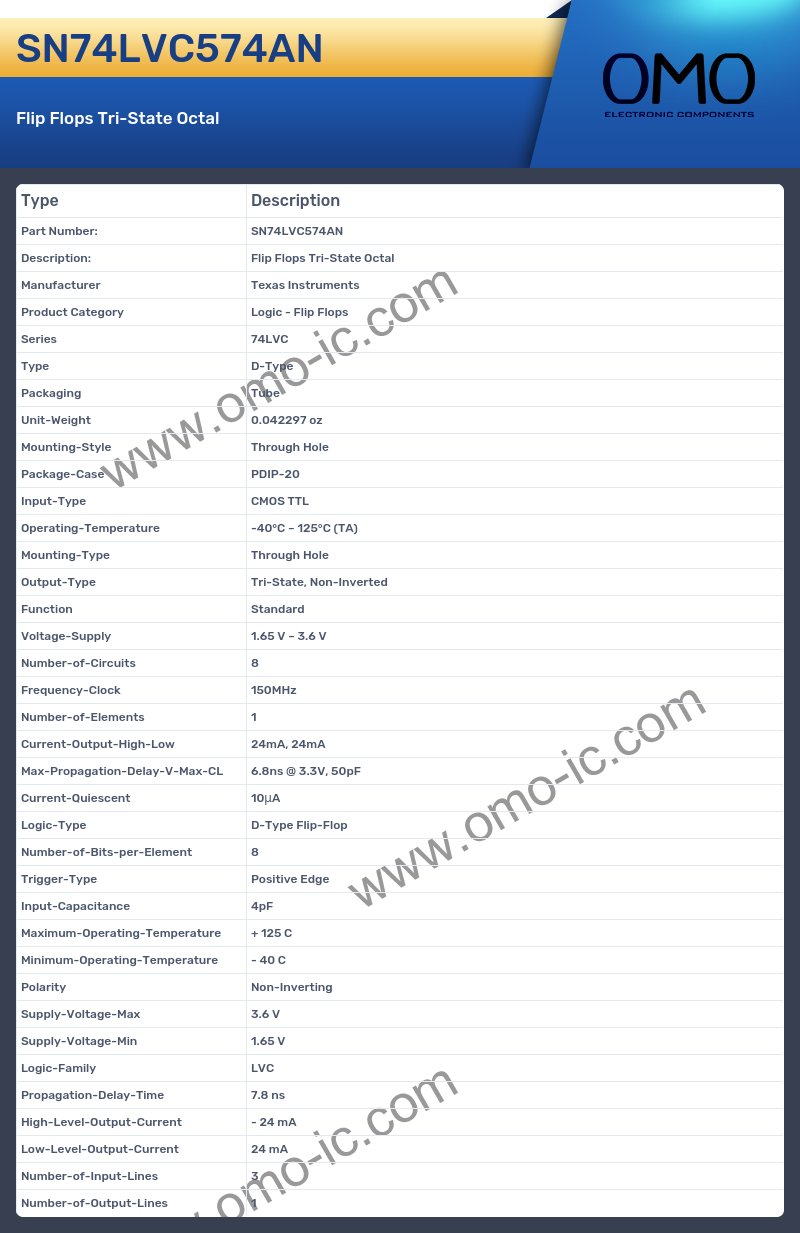

SN74LVC574AN Image

SN74LVC574AN Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LVC
• Type D-Type
• Packaging Tube
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Input-Type CMOS TTL
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Through Hole
• Output-Type Tri-State, Non-Inverted
• Function Standard
• Voltage-Supply 1.65 V ~ 3.6 V
• Number-of-Circuits 8
• Frequency-Clock 150MHz
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 6.8ns @ 3.3V, 50pF
• Current-Quiescent 10μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 8
• Trigger-Type Positive Edge
• Input-Capacitance 4pF
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.65 V
• Logic-Family LVC
• Propagation-Delay-Time 7.8 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 1
