SN74LVC245ADW

SN74LVC245ADW Overview

Product belongs to the 74LVC series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Product function is Tri-State Octal Bus. Number of channels: 8 Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 1 uA Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V LVC logic type 6.5 ns is 23 microseconds. LVTTL is the output level. This product has an TTL/CMOS for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

SN74LVC245ADW Image

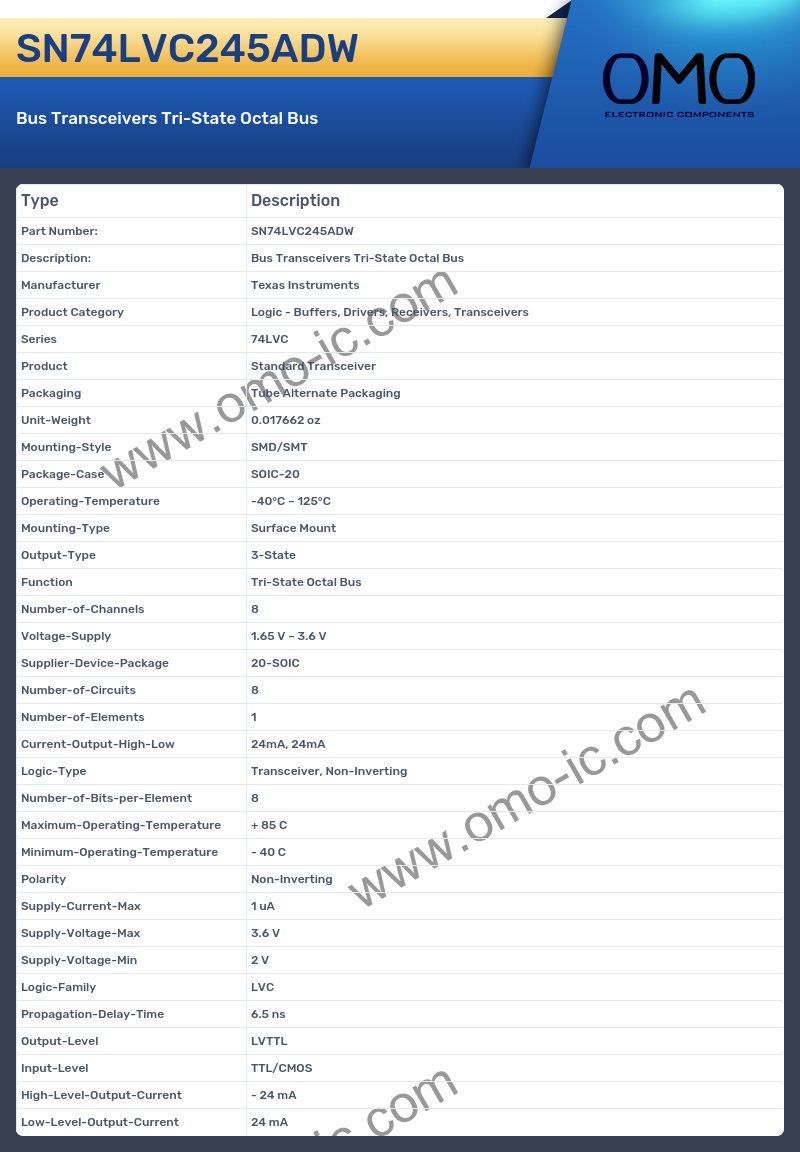

SN74LVC245ADW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVC
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Tri-State Octal Bus
• Number-of-Channels 8
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 1 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Logic-Family LVC
• Propagation-Delay-Time 6.5 ns
• Output-Level LVTTL
• Input-Level TTL/CMOS
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
