SN74LVC1G99DCTR

SN74LVC1G99DCTR Overview

Product belongs to the 74LVC series. This product is categorized as Configurable Multiple-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Tri-State Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 1 is 8. 1 Gate is the number of gates included in this product. Configurable Multiple Function logic type No. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LVC logic type 8.6 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output AND MUX NAND NOR OR XNOR XOR Buffer Inverter logic function

SN74LVC1G99DCTR Image

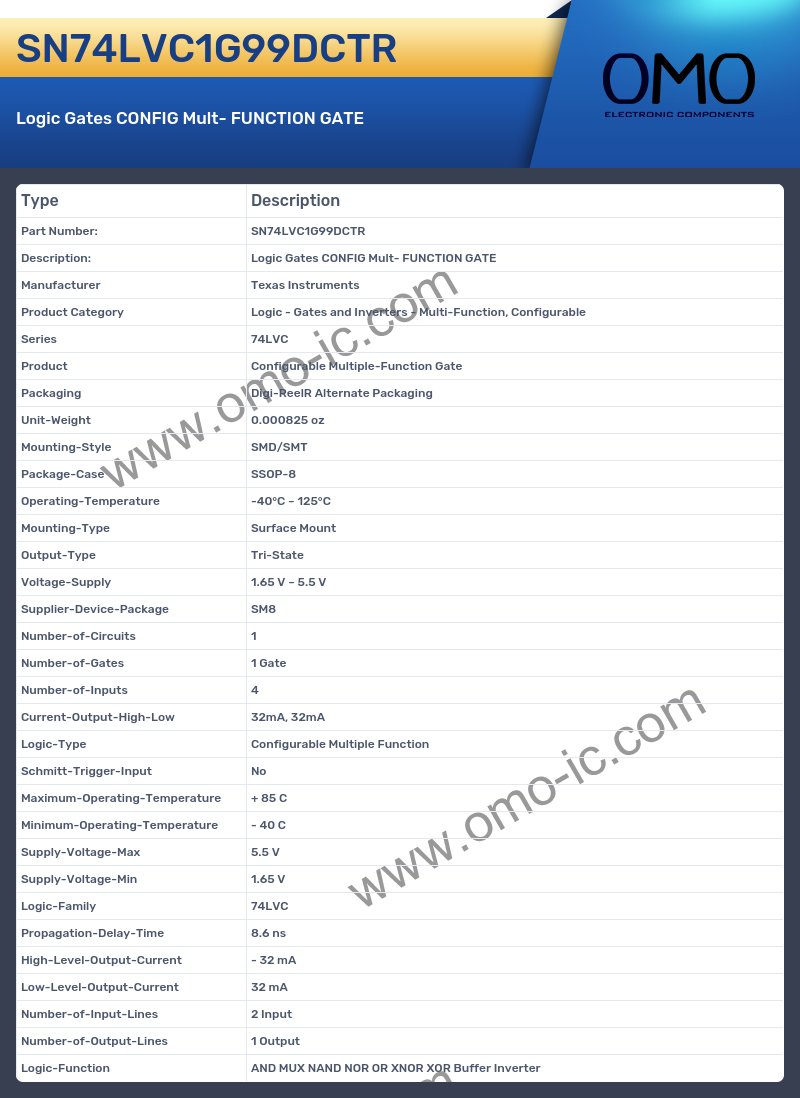

SN74LVC1G99DCTR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters - Multi-Function, Configurable
• Series 74LVC
• Product Configurable Multiple-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000825 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Tri-State
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SM8
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 4
• Current-Output-High-Low 32mA, 32mA
• Logic-Type Configurable Multiple Function
• Schmitt-Trigger-Input No
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• Propagation-Delay-Time 8.6 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function AND MUX NAND NOR OR XNOR XOR Buffer Inverter
