SN74LVC1G332DSFR

SN74LVC1G332DSFR Overview

Product belongs to the 74LVC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style X2SON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: 6-SON (1x1) 1 is 8. 1 Gate is the number of gates included in this product. 10μA maximum quiescent current. OR Gate logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V High-Level-Output-Current of - 32 mA 32 mA low-level output current OR logic function

SN74LVC1G332DSFR Image

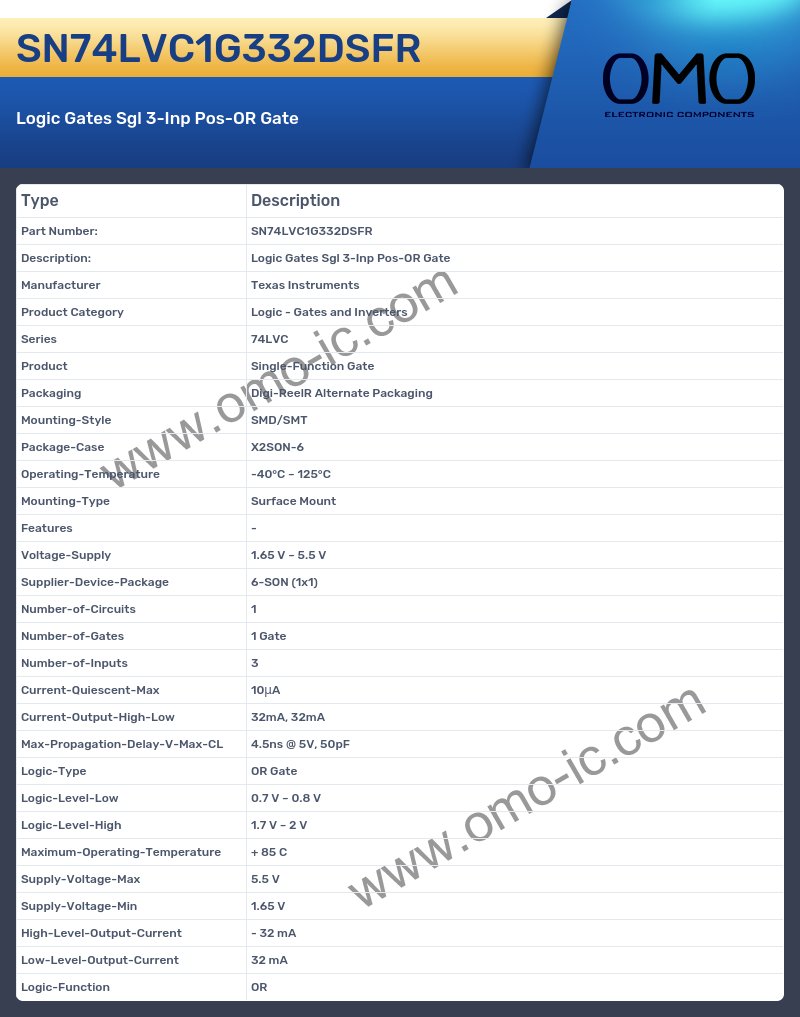

SN74LVC1G332DSFR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case X2SON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package 6-SON (1x1)
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 3
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 4.5ns @ 5V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Maximum-Operating-Temperature + 85 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Logic-Function OR
