SN74LVC04ANSRG4

SN74LVC04ANSRG4 Overview

Product belongs to the 74LVC series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 14-SOIC (0.209", 5.30mm Width) Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 14-SO 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High

SN74LVC04ANSRG4 Image

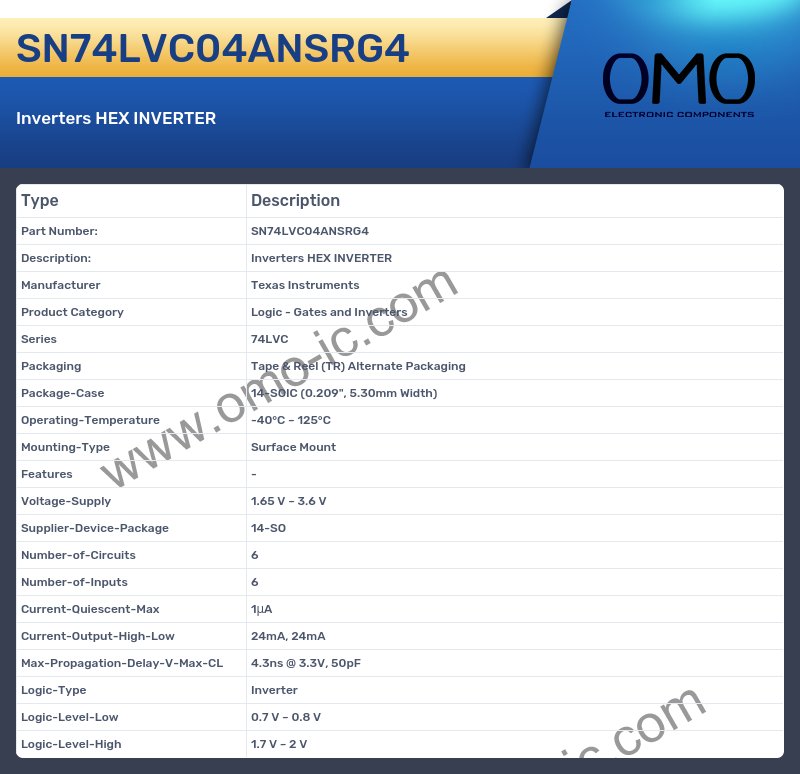

SN74LVC04ANSRG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 14-SOIC (0.209", 5.30mm Width)
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 4.3ns @ 3.3V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
