SN74LV8154N

SN74LV8154N Overview

Product belongs to the 74LV series. Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications PDIP-20 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Up directionality Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 20-PDIP 16 bit bits 2 element Binary Counter logic type 16 bits per element This product's -. - timing The 25MHz count rate. Positive Edge trigger type This product operates at a 2 V to 5.5 V supply voltage for reliable performance. Binary Counter-Type LV-A logic type

SN74LV8154N Image

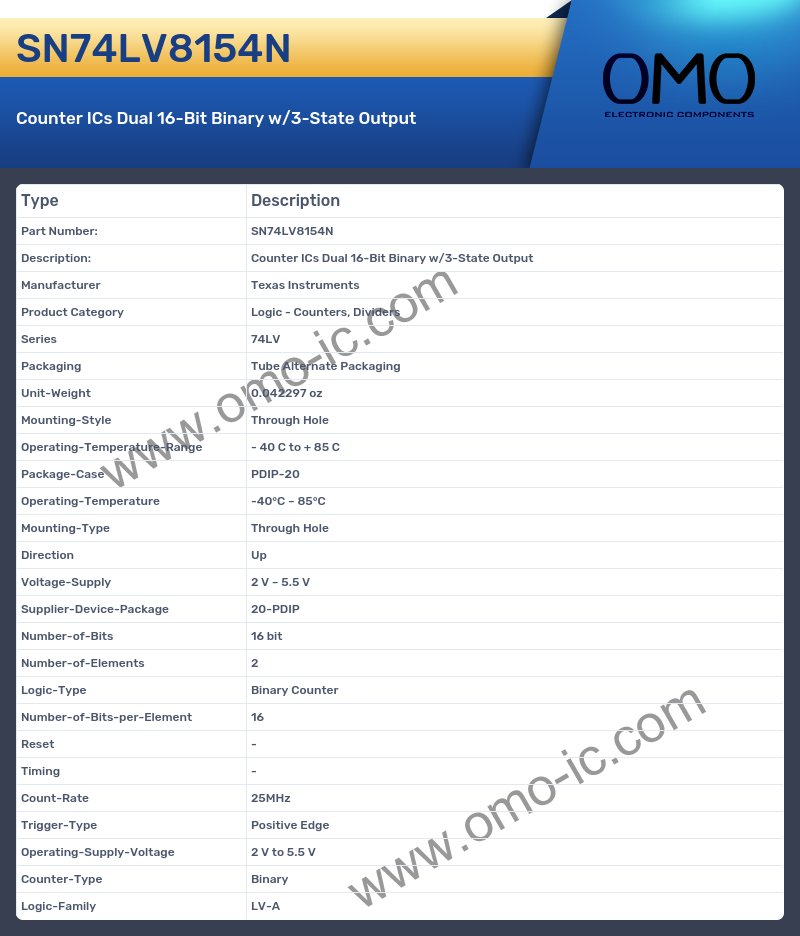

SN74LV8154N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 74LV
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Direction Up
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 20-PDIP
• Number-of-Bits 16 bit
• Number-of-Elements 2
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 16
• Reset -
• Timing -
• Count-Rate 25MHz
• Trigger-Type Positive Edge
• Operating-Supply-Voltage 2 V to 5.5 V
• Counter-Type Binary
• Logic-Family LV-A
