SN74LV595ANSR

SN74LV595ANSR Overview

Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Tri-State Product function is Serial to Parallel, Serial. Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 16-SO 1 is 8. 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V 5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type Serial to Serial/Parallel counting sequence 22.5 ns 16.5 ns 10.2 ns is 23 microseconds. Number-of-Input-Lines: 1 Number-of-Output-Lines: 9 Positive-Edge triggering type

SN74LV595ANSR Image

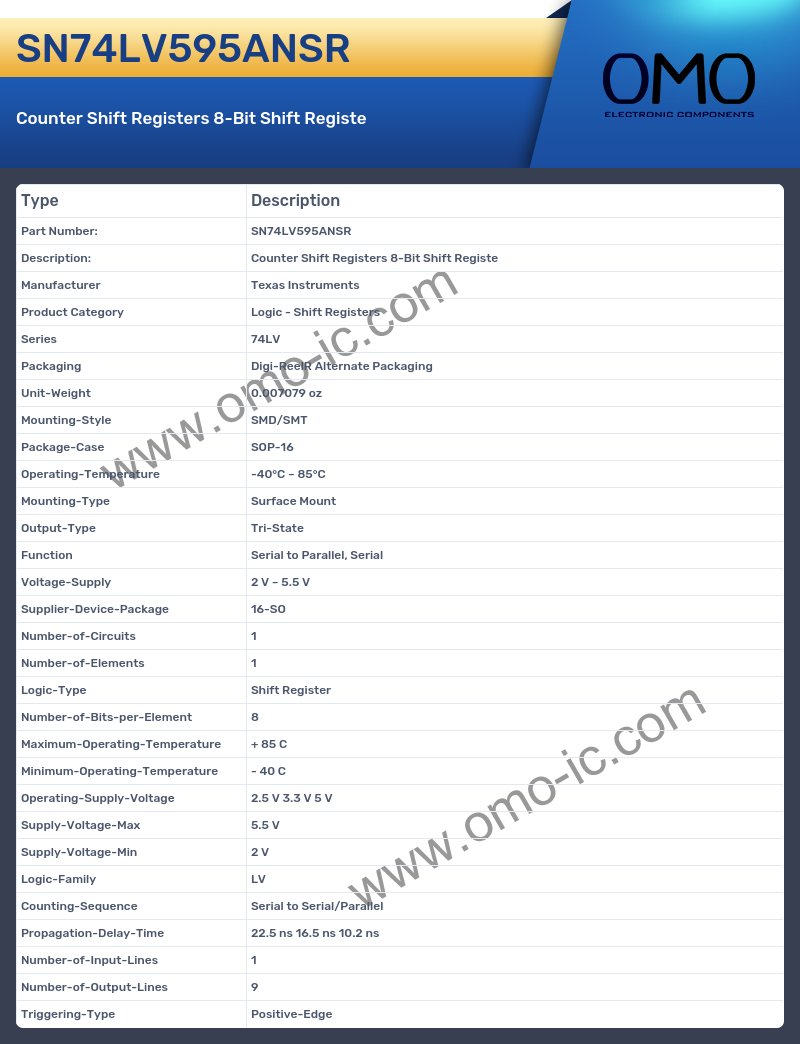

SN74LV595ANSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series 74LV
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Tri-State
• Function Serial to Parallel, Serial
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 16-SO
• Number-of-Circuits 1
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V 5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV
• Counting-Sequence Serial to Serial/Parallel
• Propagation-Delay-Time 22.5 ns 16.5 ns 10.2 ns
• Number-of-Input-Lines 1
• Number-of-Output-Lines 9
• Triggering-Type Positive-Edge
