| Mfr. #: | SN74LV541ATPWT |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Buffers & Line Drivers Octal Buffer/Driver With 3-State Outputs |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | SN74LV541ATPWT Scheda dati |
Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-TSSOP 1 element Buffer/Line Driver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V LV logic type 7.9 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

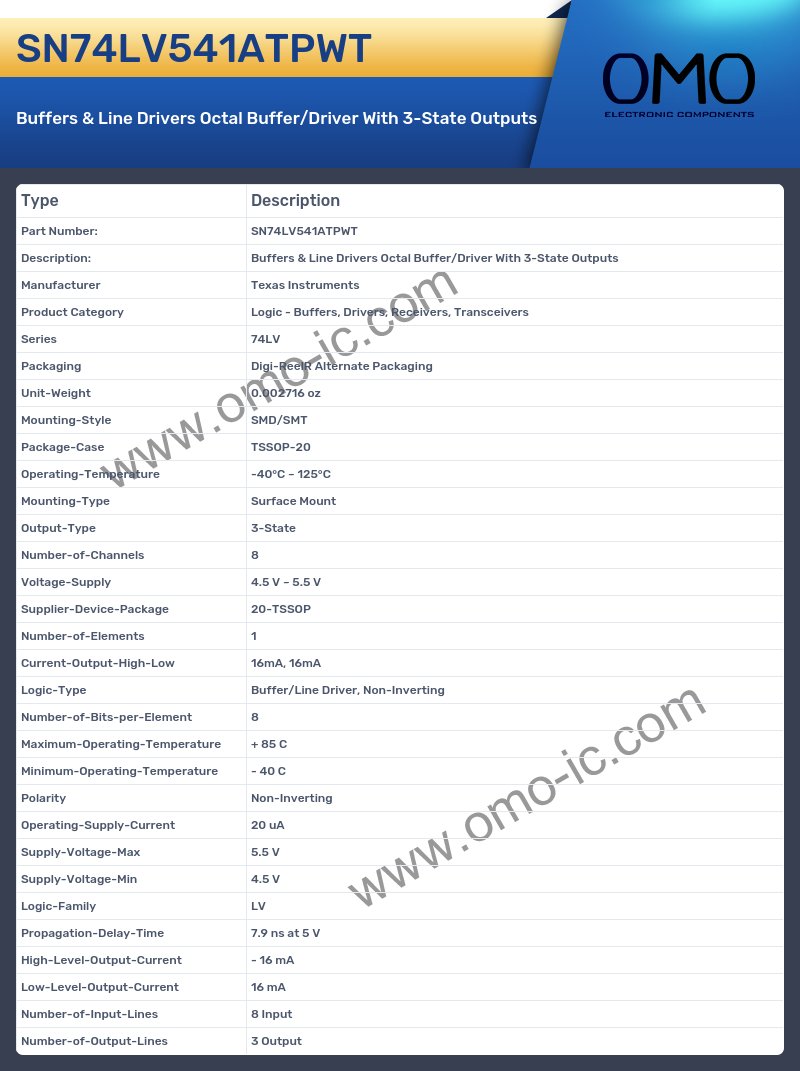

SN74LV541ATPWT Specifications
