| Mfr. #: | SN74LV126ANSR |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Buffers & Line Drivers Quad Bus Buff Gate With 3-State Outputs |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | SN74LV126ANSR Scheda dati |
Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007348 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-SO 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 16.5 ns at 2.5 V 11.5 ns at 3.3 V 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

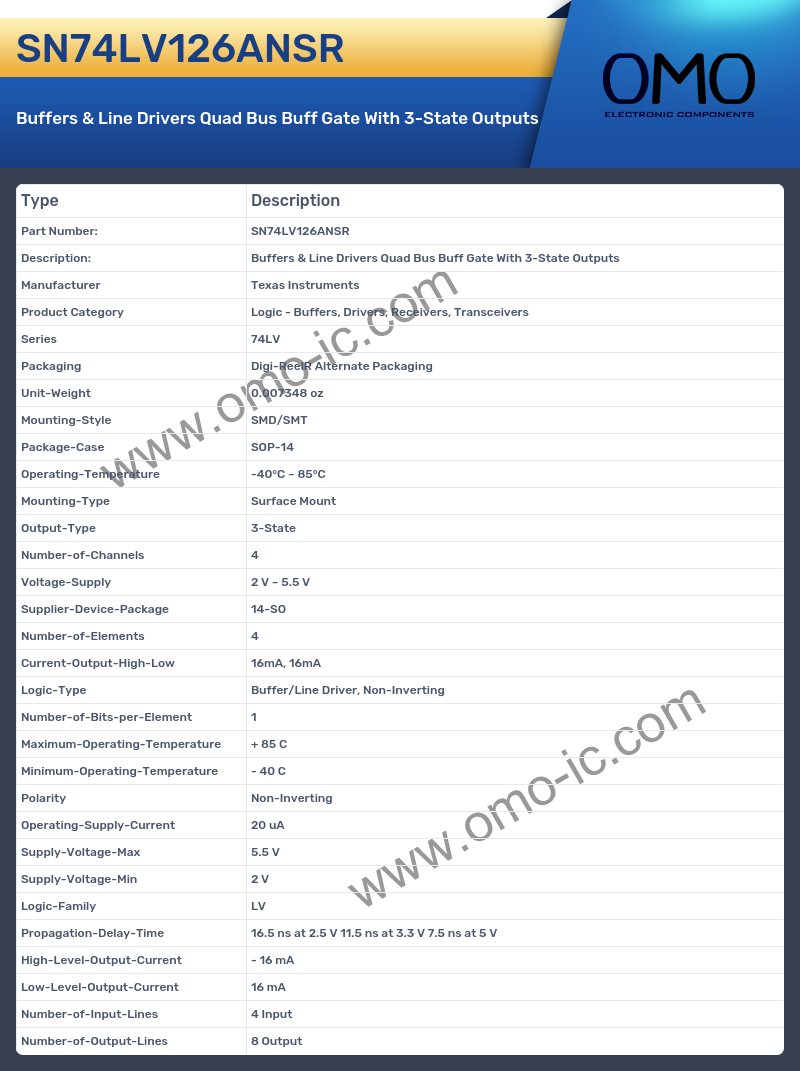

SN74LV126ANSR Specifications
A: At what frequency does the Series?
Q: The product Series is 74LV.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.007348 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOP-14.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Output-Type?
Q: The product Output-Type is 3-State.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 4.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 2 V ~ 5.5 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-SO.
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 4.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Buffer/Line Driver, Non-Inverting.
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 1
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: At what frequency does the Polarity?
Q: The product Polarity is Non-Inverting.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 20 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 2 V
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is LV.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 16.5 ns at 2.5 V 11.5 ns at 3.3 V 7.5 ns at 5 V.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 16 mA
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 16 mA
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 4 Input.
A: What is the Number-of-Output-Lines of the product?
Q: The Number-of-Output-Lines of the product is 8 Output.
