SN74LS74ANE4

SN74LS74ANE4 Overview

Product belongs to the 74LS series. Type: D-Type Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 4.75 V ~ 5.25 V 2 is 8. 33MHz is 26GHz. 2 element D-Type Edge Triggered Flip-Flop logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 40 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 1

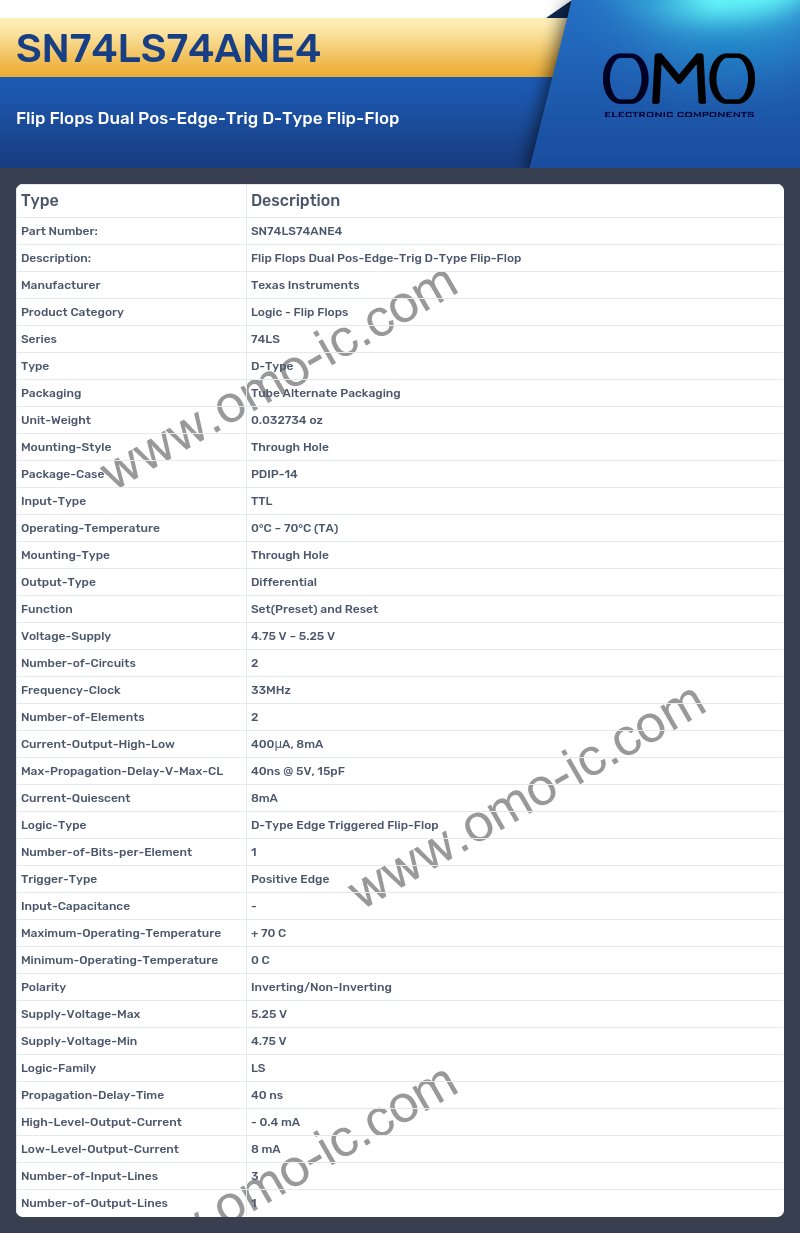

SN74LS74ANE4 Image

SN74LS74ANE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LS
• Type D-Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 4.75 V ~ 5.25 V
• Number-of-Circuits 2
• Frequency-Clock 33MHz
• Number-of-Elements 2
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 40ns @ 5V, 15pF
• Current-Quiescent 8mA
• Logic-Type D-Type Edge Triggered Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 40 ns
• High-Level-Output-Current - 0.4 mA
• Low-Level-Output-Current 8 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 1
