SN74LS628N

SN74LS628N Overview

Product belongs to the 74LS series. Type: VCO Tube Alternate Packaging is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-14 This product's 20MHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Through Hole mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-PDIP The 45 pF is 1000 pF, providing stable and reliable performance. This product has a 20mA of 200μA. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Maximum duty cycle of 50 %

SN74LS628N Image

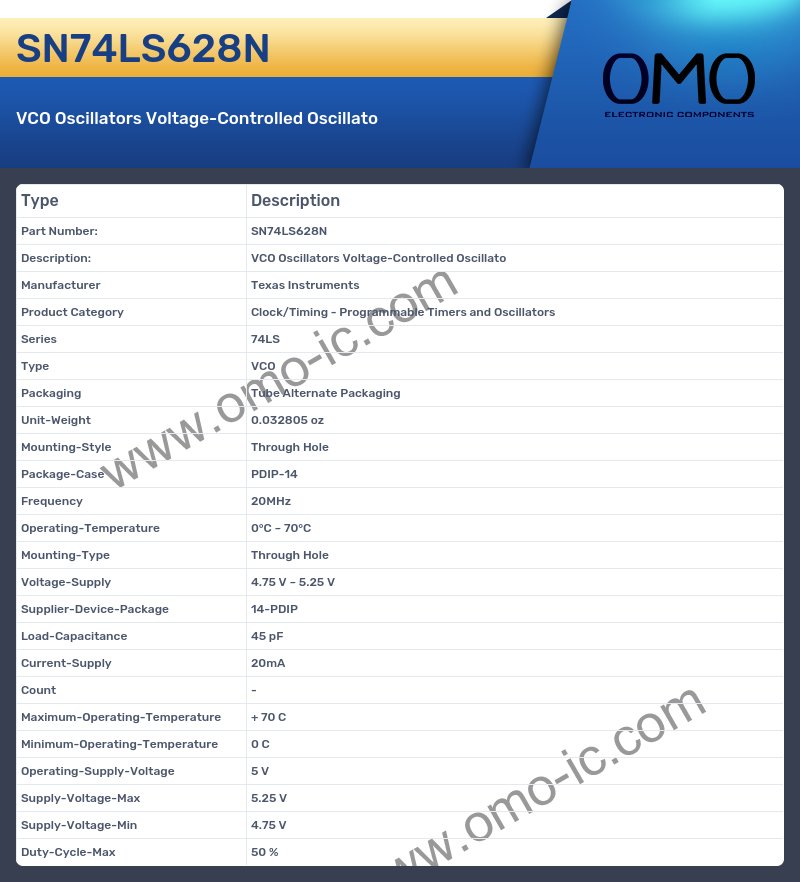

SN74LS628N Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series 74LS
• Type VCO
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Frequency 20MHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-PDIP
• Load-Capacitance 45 pF
• Current-Supply 20mA
• Count -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Duty-Cycle-Max 50 %
