| Mfr. #: | SN74LS126ANSR |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | SN74LS126ANSR Scheda dati |
Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007348 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Channel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SO 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 12 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 9 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

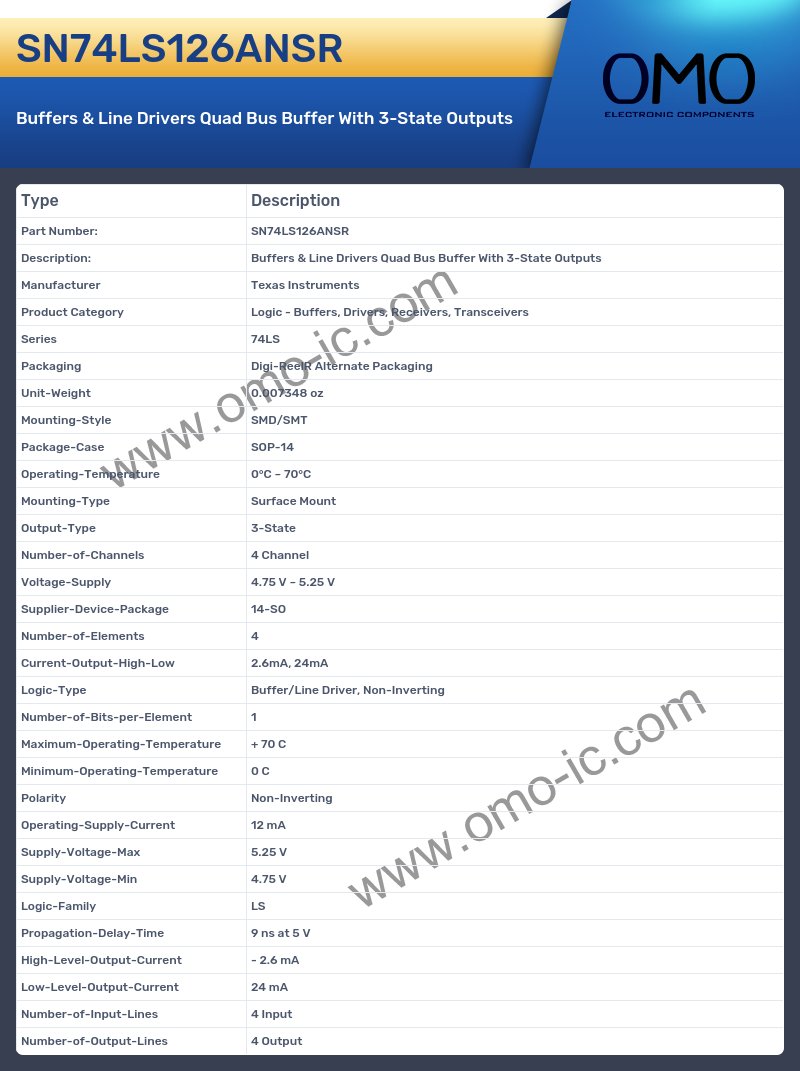

SN74LS126ANSR Specifications
A: At what frequency does the Series?
Q: The product Series is 74LS.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.007348 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOP-14.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed 0°C ~ 70°C
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is 3-State.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 4 Channel
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 4.75 V ~ 5.25 V
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-SO.
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 4.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Buffer/Line Driver, Non-Inverting.
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 1
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Non-Inverting
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 12 mA
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.25 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 4.75 V
A: What is the Logic-Family of the product?
Q: The Logic-Family of the product is LS.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 9 ns at 5 V.
A: What is the High-Level-Output-Current of the product?
Q: The High-Level-Output-Current of the product is - 2.6 mA.
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 24 mA
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 4 Input.
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 4 Output.
