SN74HC4020DR

SN74HC4020DR Overview

Product belongs to the 74HC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Up directionality Voltage Supply Range: 2 V ~ 6 V Supplier device package: 16-SOIC 14 bit bits 1 element Binary Counter logic type 14 bits per element This product's Asynchronous. Asynchronous timing The 33MHz count rate. Negative Edge trigger type This product operates at a 2 V to 6 V supply voltage for reliable performance. Binary Counter-Type HC logic type Up counting sequence

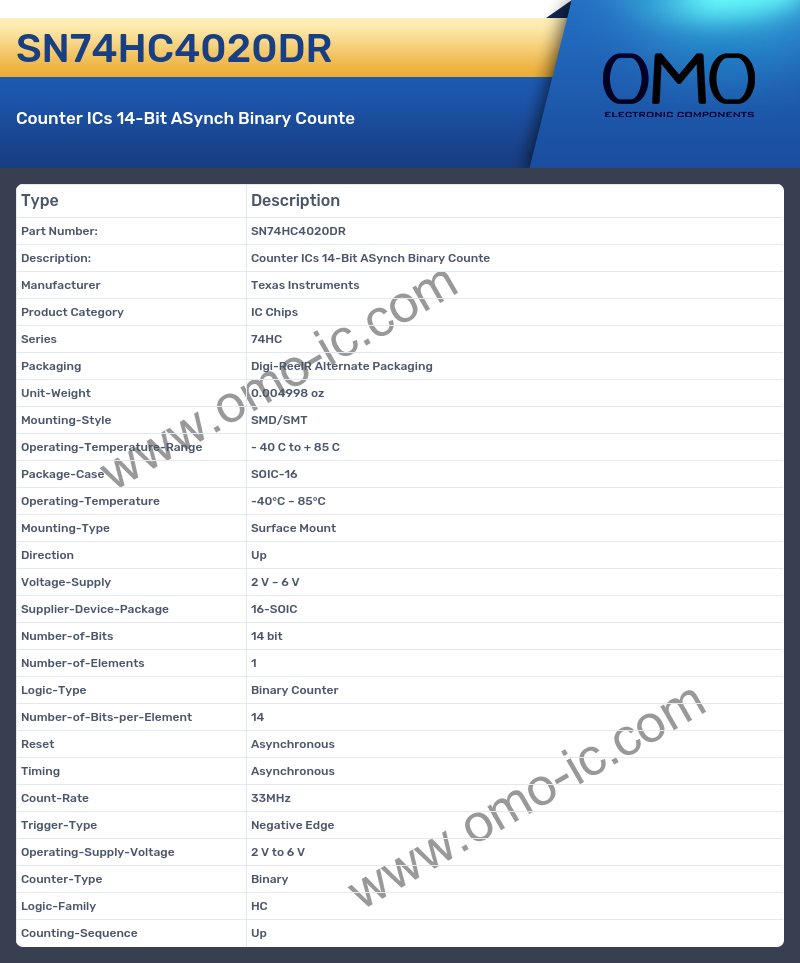

SN74HC4020DR Image

SN74HC4020DR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series 74HC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Direction Up
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 16-SOIC
• Number-of-Bits 14 bit
• Number-of-Elements 1
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 14
• Reset Asynchronous
• Timing Asynchronous
• Count-Rate 33MHz
• Trigger-Type Negative Edge
• Operating-Supply-Voltage 2 V to 6 V
• Counter-Type Binary
• Logic-Family HC
• Counting-Sequence Up
