SN74HC03D

SN74HC03D Overview

Product belongs to the 74HC series. This product is categorized as Single-Function Gate Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 4 is 8. 4 Gate is the number of gates included in this product. 2μA maximum quiescent current. NAND Gate logic type 0.5 V ~ 1.8 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 25 mA Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 31 ns is 23 microseconds. High-Level-Output-Current of - 5.2 mA 5.2 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output NAND logic function

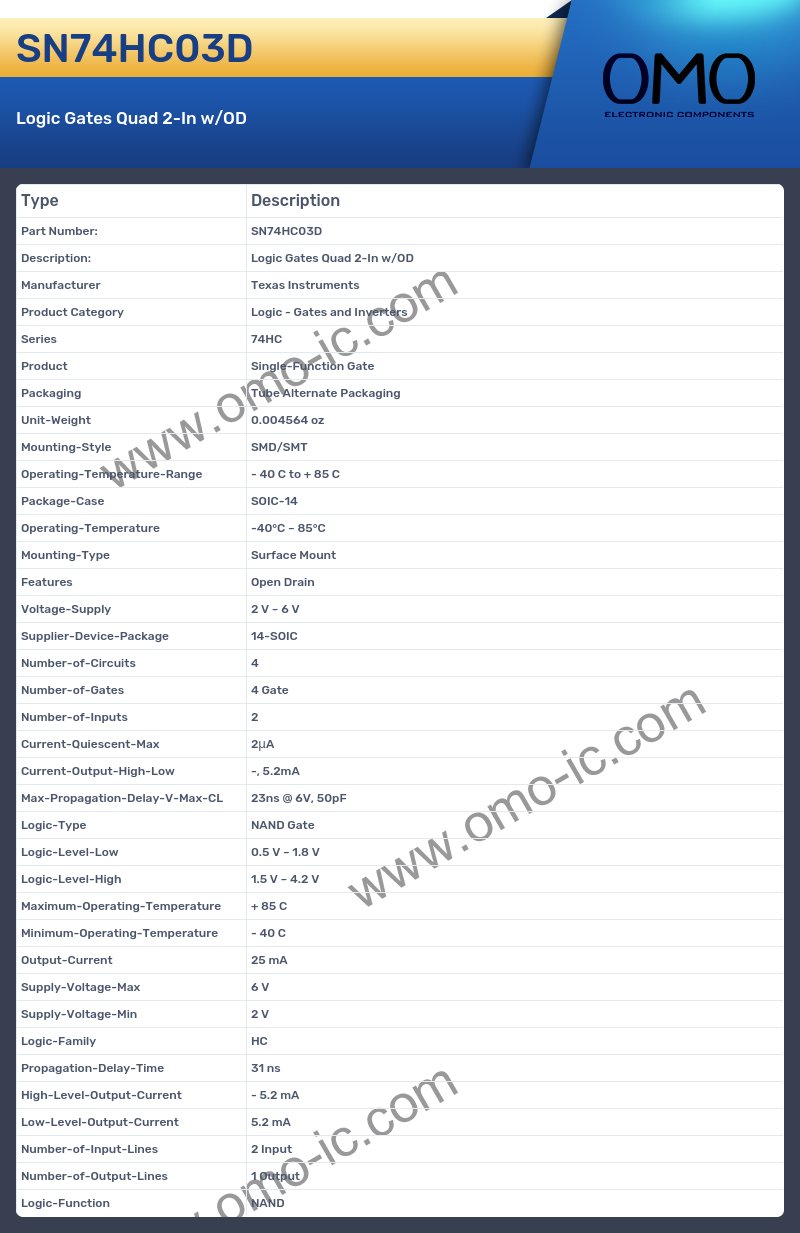

SN74HC03D Image

SN74HC03D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74HC
• Product Single-Function Gate
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Open Drain
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low -, 5.2mA
• Max-Propagation-Delay-V-Max-CL 23ns @ 6V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.5 V ~ 1.8 V
• Logic-Level-High 1.5 V ~ 4.2 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 25 mA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Propagation-Delay-Time 31 ns
• High-Level-Output-Current - 5.2 mA
• Low-Level-Output-Current 5.2 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NAND
