SN74GTL16612DL

SN74GTL16612DL Overview

Product belongs to the 74GTL series. Type: LVTTL to GTL/GTL+ GTL/GTL+ to LVTTL Tube Alternate Packaging is the packaging method for this product Weight of 0.024508 oz SMD/SMT Mounting-Style SSOP-56 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Voltage Supply Range: 3.15 V ~ 3.45 V Supplier device package: 56-SSOP 18-Bit is 8. Universal Bus Transceiver logic type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 120 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 3.15 V GTL logic type 6.3 ns is 23 microseconds.

SN74GTL16612DL Image

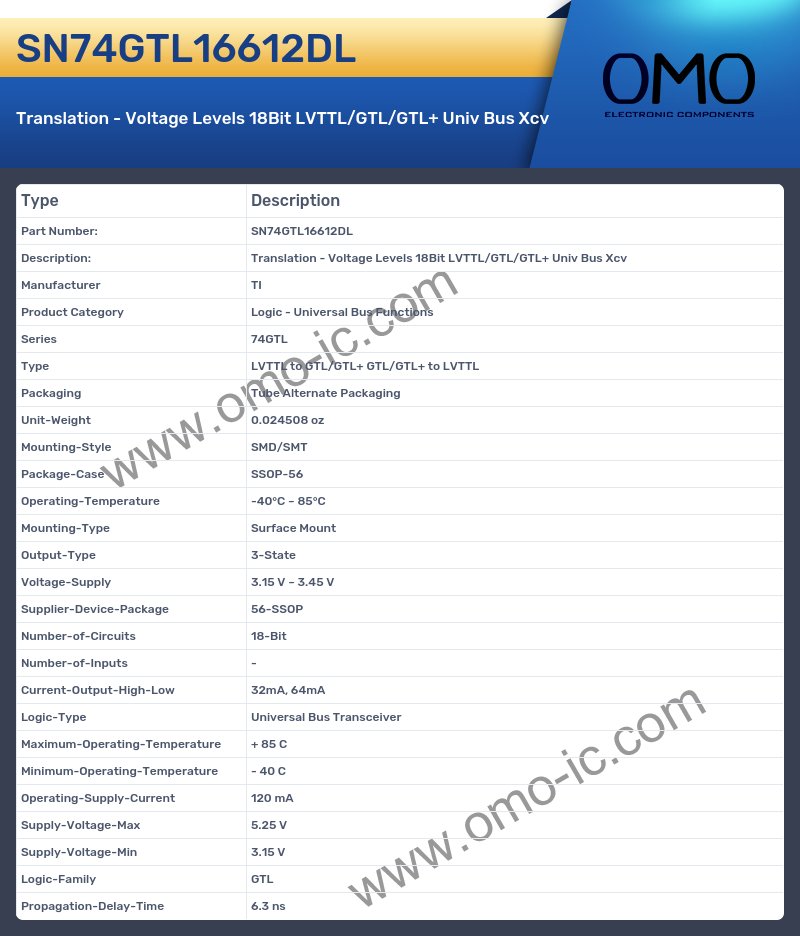

SN74GTL16612DL Specifications

• Manufacturer TI
• Product Category Logic - Universal Bus Functions
• Series 74GTL
• Type LVTTL to GTL/GTL+ GTL/GTL+ to LVTTL
• Packaging Tube Alternate Packaging
• Unit-Weight 0.024508 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-56
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Voltage-Supply 3.15 V ~ 3.45 V
• Supplier-Device-Package 56-SSOP
• Number-of-Circuits 18-Bit
• Number-of-Inputs -
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Universal Bus Transceiver
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 120 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 3.15 V
• Logic-Family GTL
• Propagation-Delay-Time 6.3 ns
