SN74F1016DW Overview

Product belongs to the 74F series. This product is categorized as Schottky Diodes Tube Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style 20-SOIC (0.295", 7.50mm Width) Si is the technology used. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Supplier device package: 20-SOIC 16 bits Configuration Array 16 Schottky Barrier Diode Bus-Termination Array logic type The -. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Vf-Forward-Voltage: 1.25 V Ir-Reverse-Current is 2 uA. If-Forward-Current is 170 mA. VRRM (7 V) Reverse Voltage The 10 ns TRR-Reverse-Recovery-time

SN74F1016DW Image

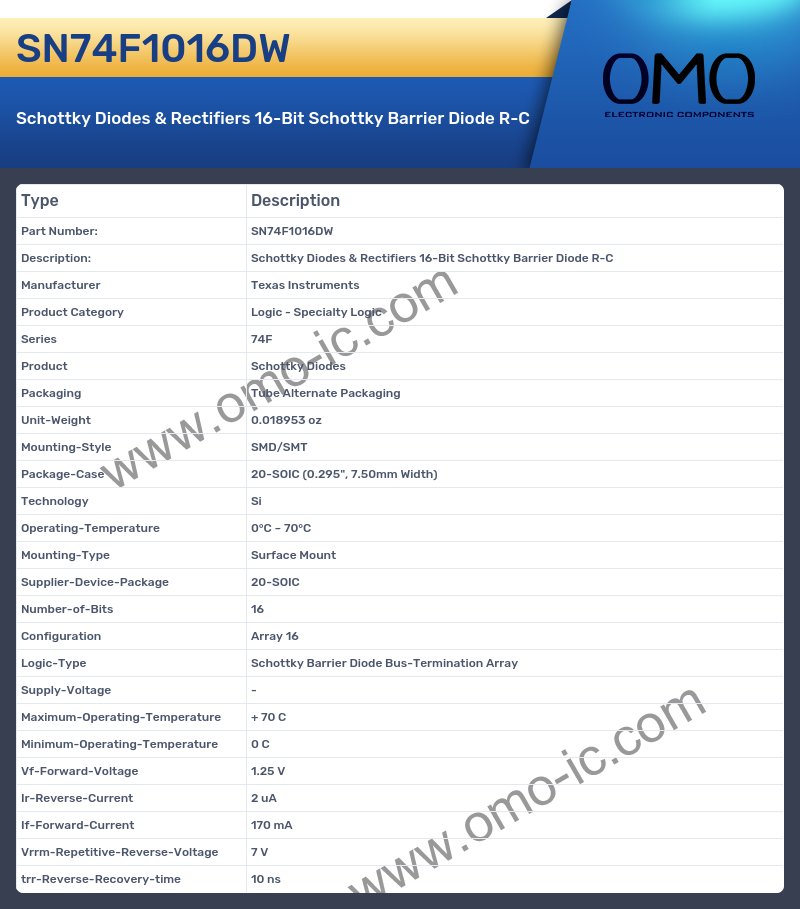

SN74F1016DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74F
• Product Schottky Diodes
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case 20-SOIC (0.295", 7.50mm Width)
• Technology Si
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Supplier-Device-Package 20-SOIC
• Number-of-Bits 16
• Configuration Array 16
• Logic-Type Schottky Barrier Diode Bus-Termination Array
• Supply-Voltage -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Vf-Forward-Voltage 1.25 V
• Ir-Reverse-Current 2 uA
• If-Forward-Current 170 mA
• Vrrm-Repetitive-Reverse-Voltage 7 V
• trr-Reverse-Recovery-time 10 ns
