SN74AS1004ANSR

SN74AS1004ANSR Overview

Product belongs to the 74AS series. Tape & Reel (TR) is the packaging method for this product Weight of 0.007348 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS Number of channels: 5 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-SO 6 is 8. - maximum quiescent current. Inverter logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 12 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V AS logic type 4 ns at 4.5 V to 5.5 V is 23 microseconds. High-Level-Output-Current of - 48 mA 48 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

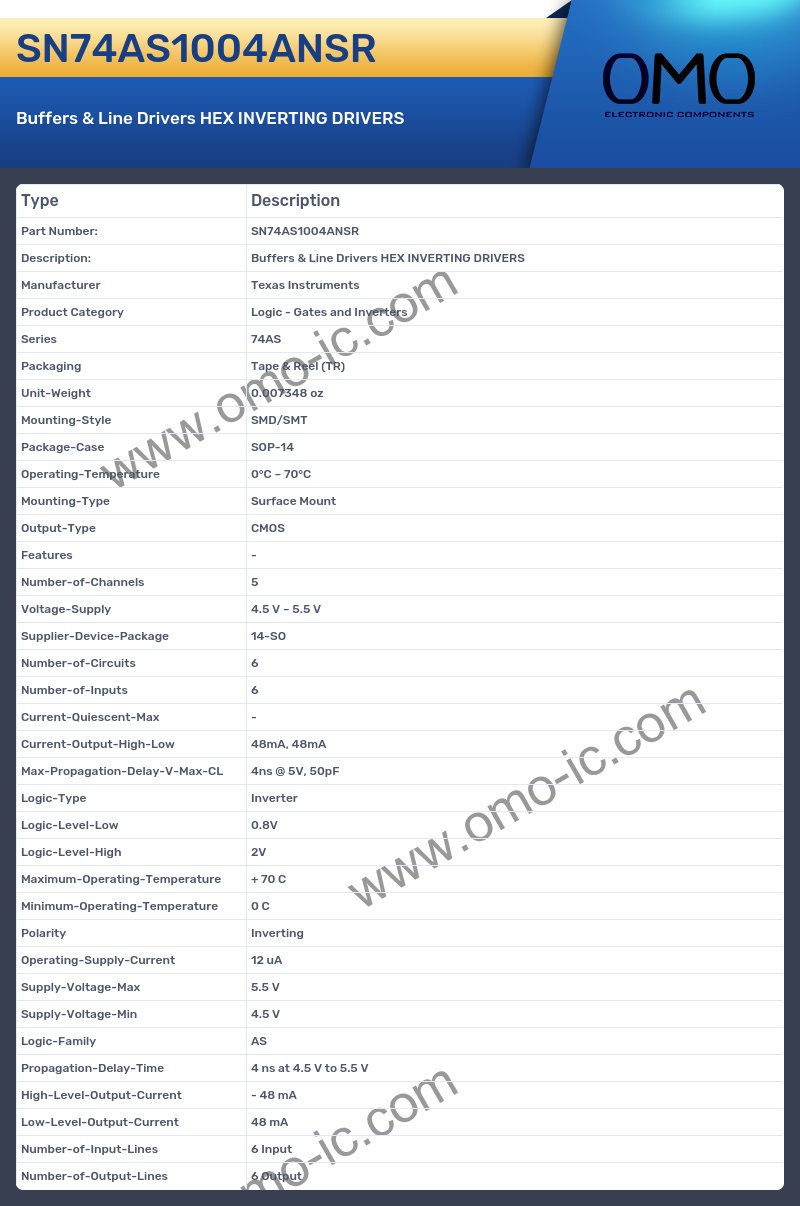

SN74AS1004ANSR Image

SN74AS1004ANSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AS
• Packaging Tape & Reel (TR)
• Unit-Weight 0.007348 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS
• Features -
• Number-of-Channels 5
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max -
• Current-Output-High-Low 48mA, 48mA
• Max-Propagation-Delay-V-Max-CL 4ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting
• Operating-Supply-Current 12 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family AS
• Propagation-Delay-Time 4 ns at 4.5 V to 5.5 V
• High-Level-Output-Current - 48 mA
• Low-Level-Output-Current 48 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
