SN74ALS29821DW

SN74ALS29821DW Overview

Product belongs to the 74ALS series. Type: D-Type Tube is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Wide The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Product function is Standard. Voltage Supply Range: 4.75 V ~ 5.25 V 1 is 8. - is 26GHz. 1 element Bus Interface Flip-Flop logic type 10 bits per element Positive Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V ALS logic type 16 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 48 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 1

SN74ALS29821DW Image

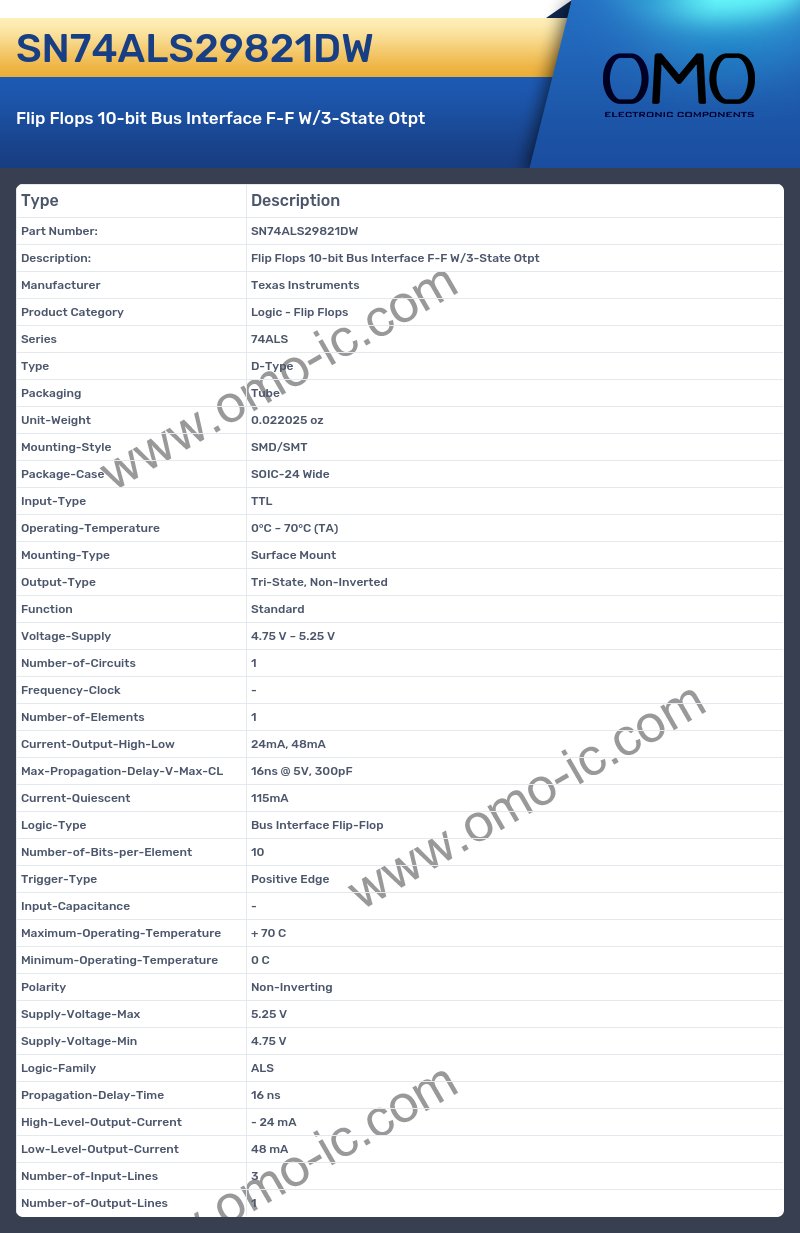

SN74ALS29821DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74ALS
• Type D-Type
• Packaging Tube
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24 Wide
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Function Standard
• Voltage-Supply 4.75 V ~ 5.25 V
• Number-of-Circuits 1
• Frequency-Clock -
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 48mA
• Max-Propagation-Delay-V-Max-CL 16ns @ 5V, 300pF
• Current-Quiescent 115mA
• Logic-Type Bus Interface Flip-Flop
• Number-of-Bits-per-Element 10
• Trigger-Type Positive Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family ALS
• Propagation-Delay-Time 16 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 48 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 1
