SN74AHCT595NE4

SN74AHCT595NE4 Overview

Product belongs to the 74AHCT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: Tri-State Product function is Serial to Parallel, Serial. Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-PDIP 1 is 8. 8 bit bits 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V AHCT logic type Serial to Serial/Parallel counting sequence 10.2 ns is 23 microseconds. Number-of-Input-Lines: 1 Number-of-Output-Lines: 9 Positive Edge triggering type

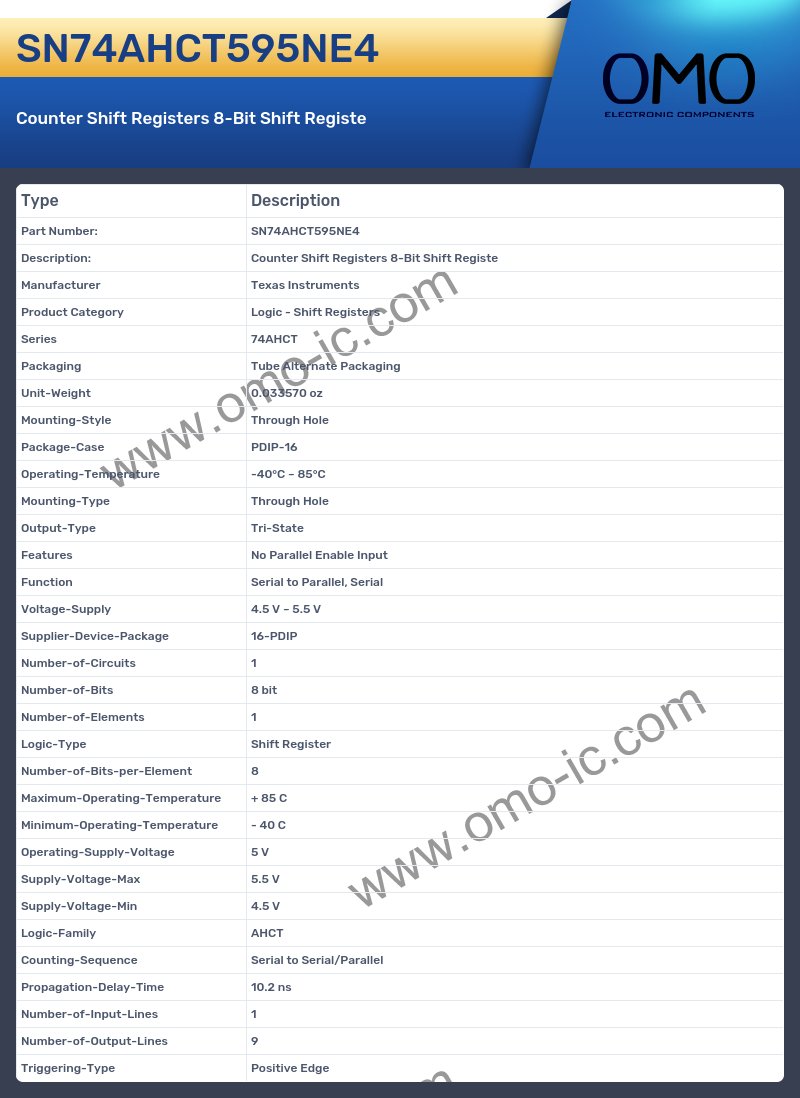

SN74AHCT595NE4 Image

SN74AHCT595NE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series 74AHCT
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type Tri-State
• Features No Parallel Enable Input
• Function Serial to Parallel, Serial
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-PDIP
• Number-of-Circuits 1
• Number-of-Bits 8 bit
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family AHCT
• Counting-Sequence Serial to Serial/Parallel
• Propagation-Delay-Time 10.2 ns
• Number-of-Input-Lines 1
• Number-of-Output-Lines 9
• Triggering-Type Positive Edge
