SN74ACT244MNSREP

SN74ACT244MNSREP Overview

Product belongs to the 74ACT series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SO 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Non-Inverting 40 uA is 92 nA. This product is also known as V62/04620-01YE and can be referred to by either part number. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 9 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output

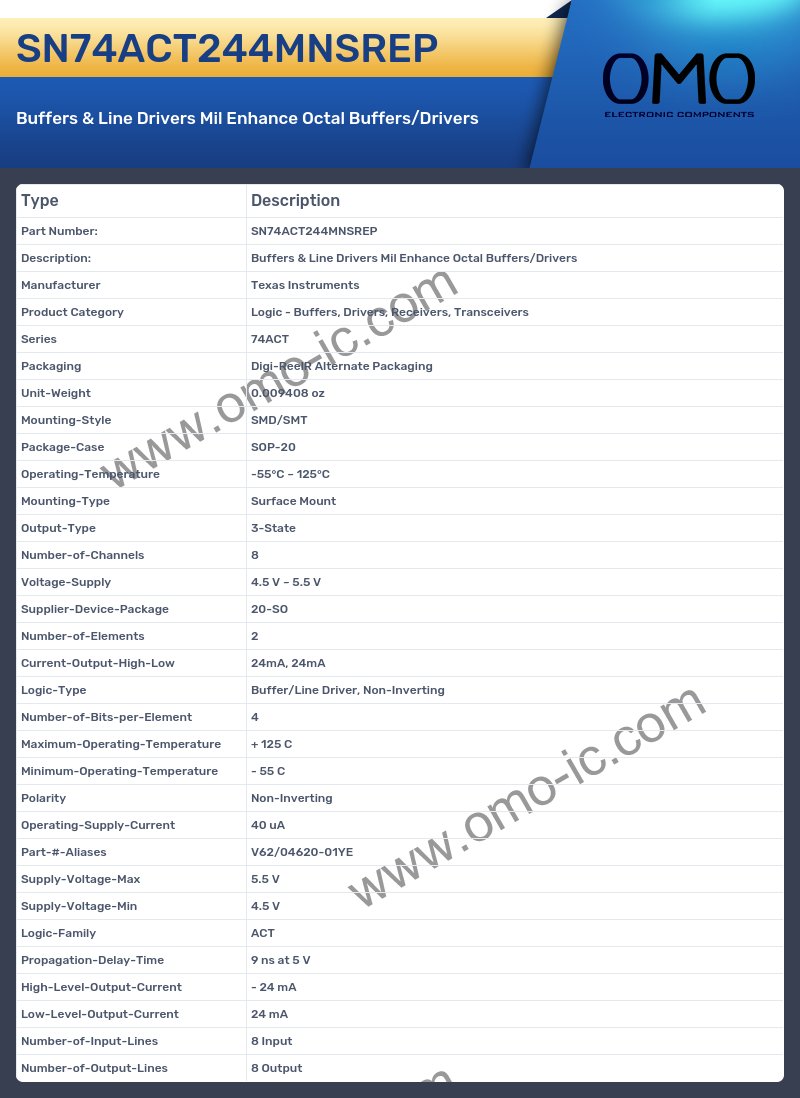

SN74ACT244MNSREP Image

SN74ACT244MNSREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SO
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Non-Inverting
• Operating-Supply-Current 40 uA
• Part-#-Aliases V62/04620-01YE
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 9 ns at 5 V
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 8 Input
• Number-of-Output-Lines 8 Output
