SN74AC04DE4 Overview

Product belongs to the 74AC series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 6 is 8. 2μA maximum quiescent current. Inverter logic type 0.9 V ~ 1.65 V is a Logic-Level-Low; 2.1 V ~ 3.85 V is the Logic-Level-High

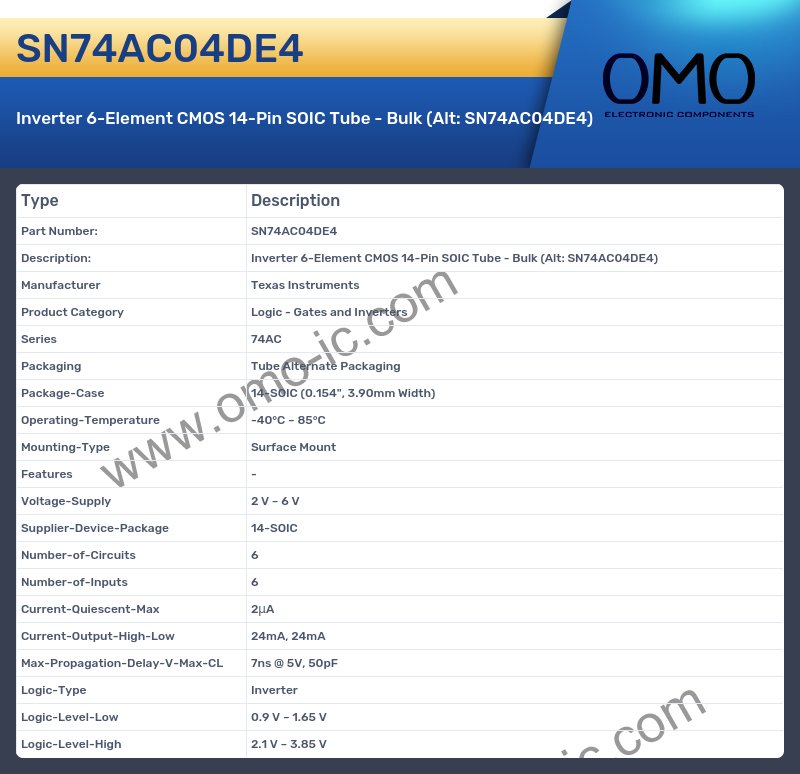

SN74AC04DE4 Image

SN74AC04DE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AC
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 7ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.9 V ~ 1.65 V
• Logic-Level-High 2.1 V ~ 3.85 V
