SN74ABT16843DL

SN74ABT16843DL Overview

Product belongs to the 74ABT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.024508 oz SMD/SMT Mounting-Style SSOP-56 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Tri-State Number of channels: 18 Channels Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 56-SSOP 18 Circuit is 8. Circuit type: 1899/12/30 9:09:00 D-Type Transparent Latch logic type 2 Independent Circuit The 4ns Delay-Time-Propagation. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ABT logic type 4.2 ns at 5 V is 23 microseconds. This product has a 85 mA of 7 mA, making it ideal for low-power applications. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 18 Line Number-of-Output-Lines: 18 Line

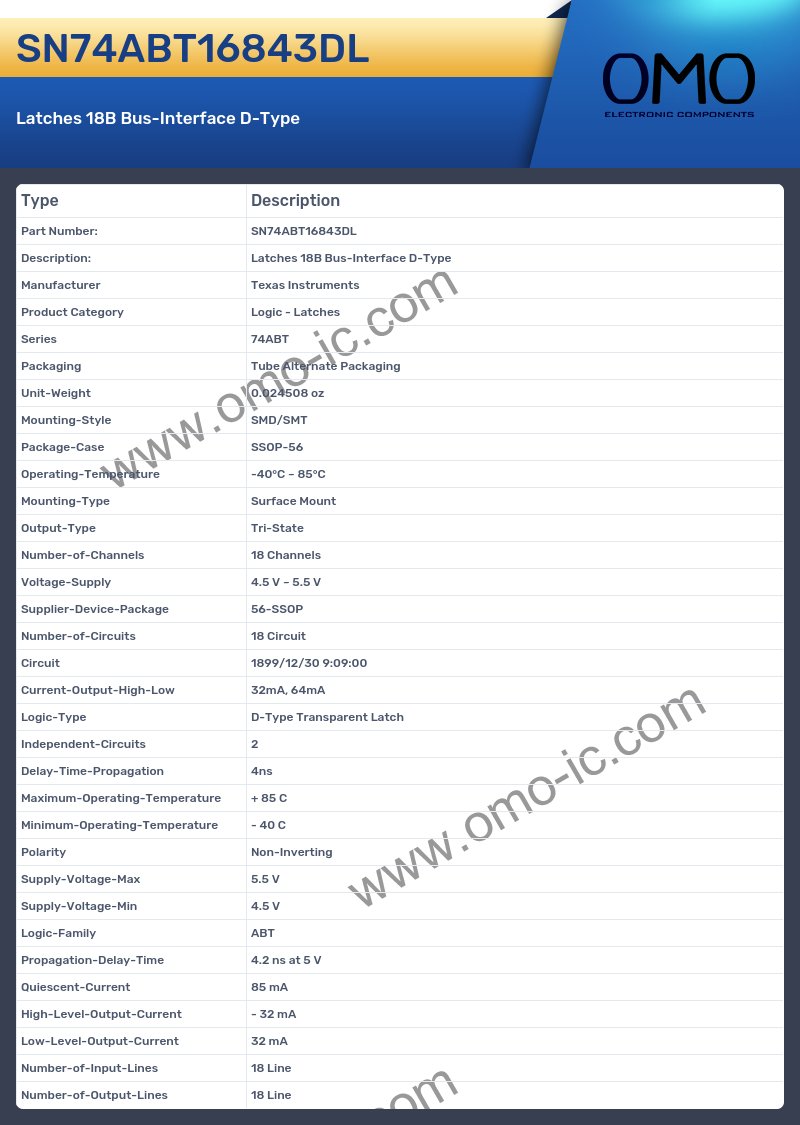

SN74ABT16843DL Image

SN74ABT16843DL Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Latches
• Series 74ABT
• Packaging Tube Alternate Packaging
• Unit-Weight 0.024508 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-56
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Tri-State
• Number-of-Channels 18 Channels
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 56-SSOP
• Number-of-Circuits 18 Circuit
• Circuit 1899/12/30 9:09:00
• Current-Output-High-Low 32mA, 64mA
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 2
• Delay-Time-Propagation 4ns
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ABT
• Propagation-Delay-Time 4.2 ns at 5 V
• Quiescent-Current 85 mA
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 18 Line
• Number-of-Output-Lines 18 Line
