SN65LVDT101D Overview

Product belongs to the SN65LVDT101 series. Type: Buffer, ReDriver Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The CML LVDS LVPECL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVPECL Versatile - applications for maximum usability Number of channels: 1 Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 8-SOIC Input type: CML, LVDS, LVPECL The LVPECL. This product has a 50mA of 200μA. Data rate maximum is 2Gbps . The Capacitance-Input is set to 0.6pF; Power-off control: 481 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 90 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 0.9 ns is 23 microseconds.

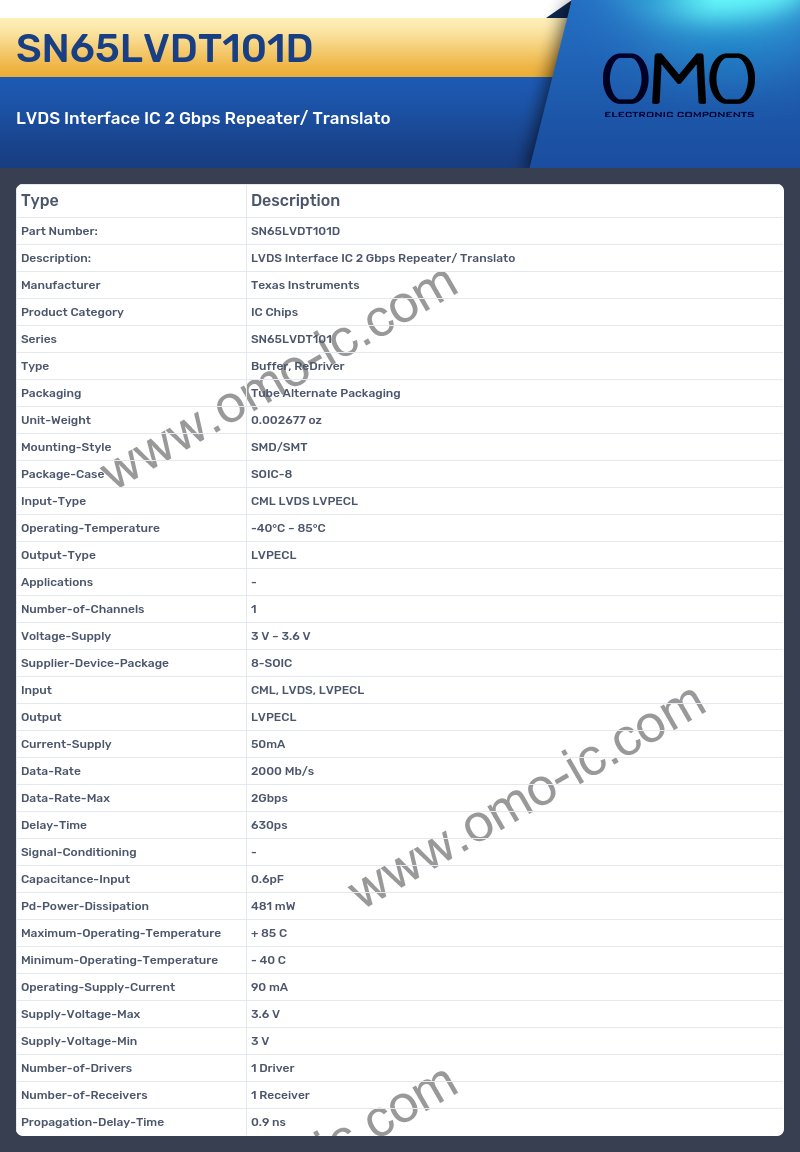

SN65LVDT101D Image

SN65LVDT101D Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series SN65LVDT101
• Type Buffer, ReDriver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type CML LVDS LVPECL
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVPECL
• Applications -
• Number-of-Channels 1
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 8-SOIC
• Input CML, LVDS, LVPECL
• Output LVPECL
• Current-Supply 50mA
• Data-Rate 2000 Mb/s
• Data-Rate-Max 2Gbps
• Delay-Time 630ps
• Signal-Conditioning -
• Capacitance-Input 0.6pF
• Pd-Power-Dissipation 481 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 90 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 0.9 ns
