SN65LVDS180D

SN65LVDS180D Overview

Product belongs to the 65LVDS series. Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.004586 oz SMD/SMT Mounting-Style SOIC-14 The LVDS LVTTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: LVDS LVTTL Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 14-SOIC This product has a 2016/1/1 number of drivers and receivers. Power-off control: 1110 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 2.7 ns is 23 microseconds.

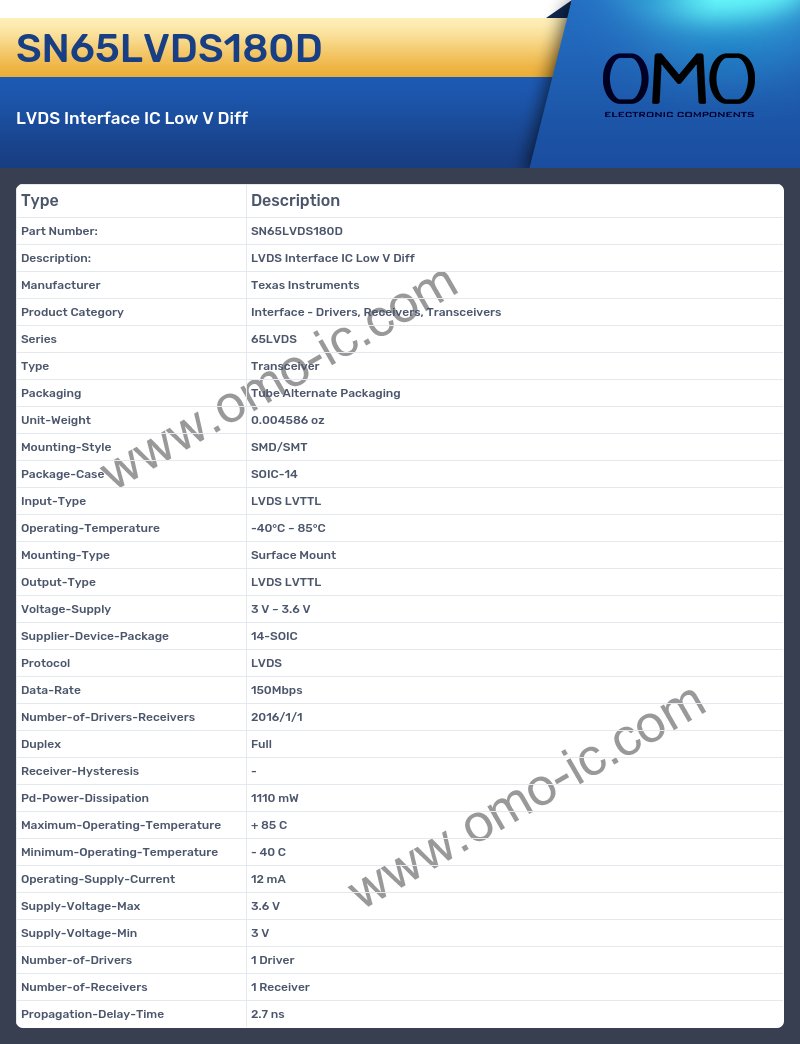

SN65LVDS180D Image

SN65LVDS180D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series 65LVDS
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004586 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type LVDS LVTTL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type LVDS LVTTL
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 14-SOIC
• Protocol LVDS
• Data-Rate 150Mbps
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Full
• Receiver-Hysteresis -
• Pd-Power-Dissipation 1110 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 2.7 ns
