SN65LVDS17DRFT

SN65LVDS17DRFT Overview

Product belongs to the SN65LVDS17 series. Type: Buffer, ReDriver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000384 oz SMD/SMT Mounting-Style WSON-8 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Versatile - applications for maximum usability Number of channels: 1 Voltage Supply Range: 2.375 V ~ 3.6 V Supplier device package: 8-WSON (2x2) Input type: PECL The LVDS. This product has a 40mA of 200μA. Data rate maximum is 4Gbps . The Capacitance-Input is set to -; Power-off control: 132 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 48 mA is 92 nA. The SN65LVDS17EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.375 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 340 ps is 23 microseconds.

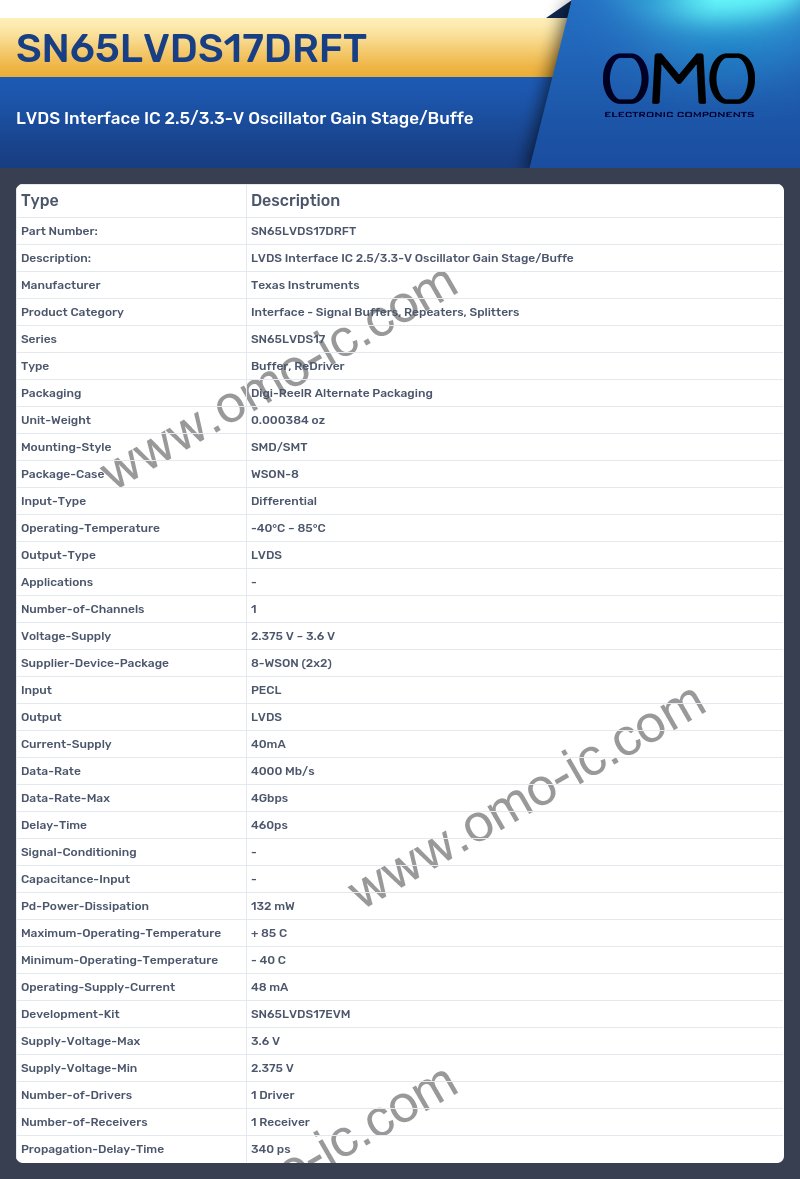

SN65LVDS17DRFT Image

SN65LVDS17DRFT Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Signal Buffers, Repeaters, Splitters
• Series SN65LVDS17
• Type Buffer, ReDriver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000384 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-8
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Applications -
• Number-of-Channels 1
• Voltage-Supply 2.375 V ~ 3.6 V
• Supplier-Device-Package 8-WSON (2x2)
• Input PECL
• Output LVDS
• Current-Supply 40mA
• Data-Rate 4000 Mb/s
• Data-Rate-Max 4Gbps
• Delay-Time 460ps
• Signal-Conditioning -
• Capacitance-Input -
• Pd-Power-Dissipation 132 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 48 mA
• Development-Kit SN65LVDS17EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.375 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 340 ps
