SN65HVD21P

SN65HVD21P Overview

Product belongs to the SN65HVD21 series. This product is categorized as RS-485 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Product function is Transceiver. Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-PDIP This product has a 2016/1/1 number of drivers and receivers. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 12 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers.

SN65HVD21P Image

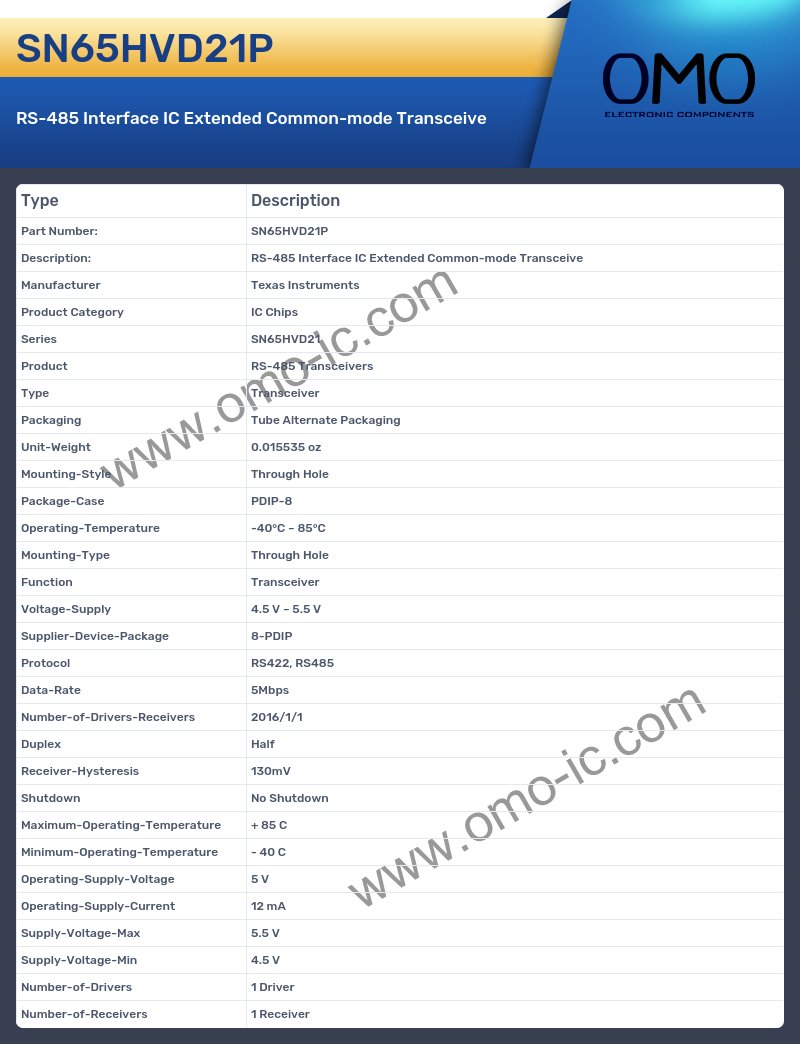

SN65HVD21P Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series SN65HVD21
• Product RS-485 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Function Transceiver
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-PDIP
• Protocol RS422, RS485
• Data-Rate 5Mbps
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Half
• Receiver-Hysteresis 130mV
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 12 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
